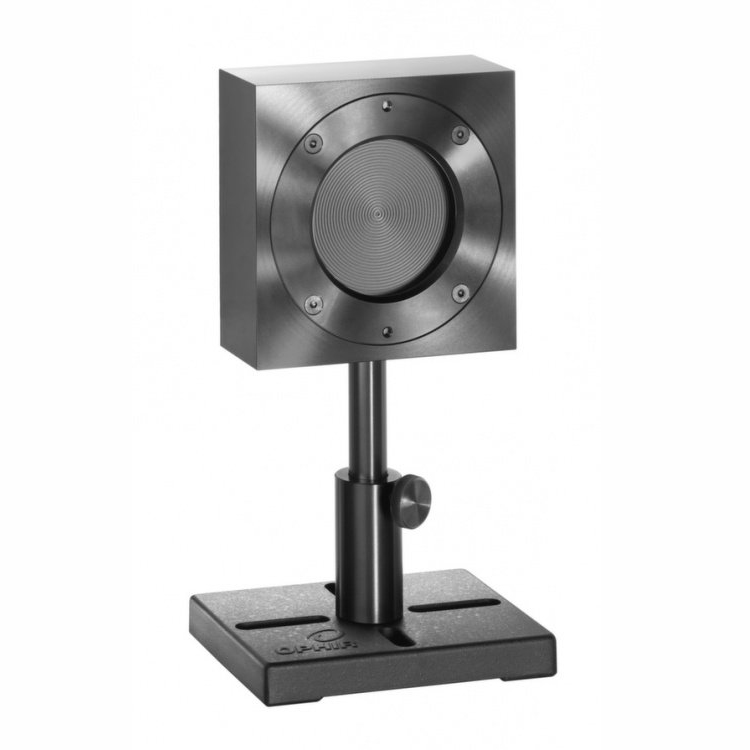

Ophir L40(200)A-EX-50 中功率热传感器 (300mW-200W)

Absorber Type: EX

Aperture: Ø50mm

Spectral Range: 0.15-0.7µm, 10.6µm

Power Range: 300mW-200W

Energy Range: 100mJ-200J

Dimensions: 90 L x 90 W x 33 D (mm)

Max Pulse Energy: 200J

Max Average Power Density: 1.5kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 0.5J/cm²

Max Energy Density (for 2ms): 12J/cm²

Max Average Power: 200W

Compliance: CE, UKCA, China RoHS
