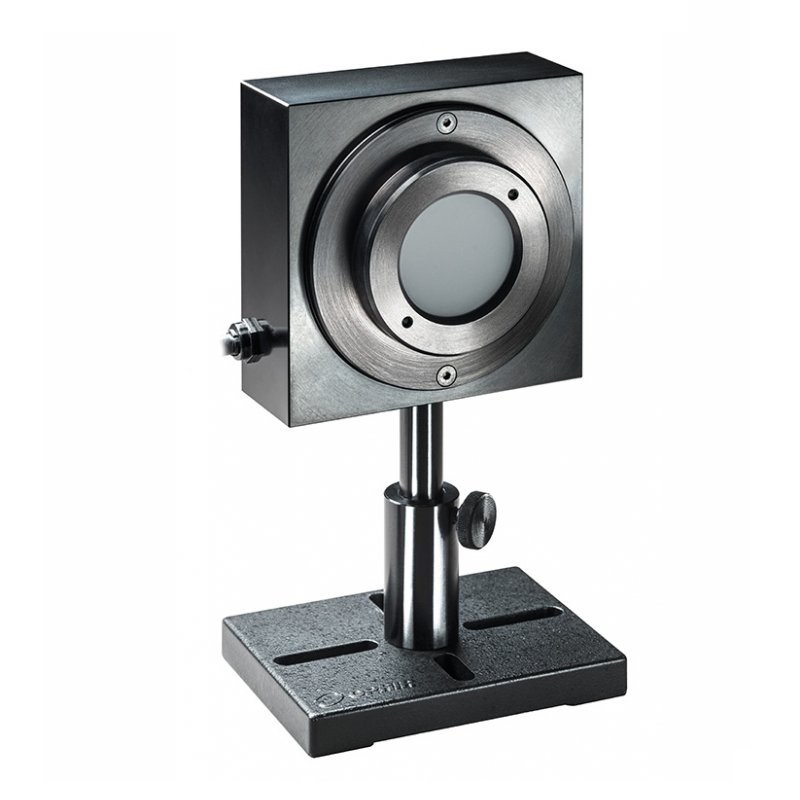

Ophir L40(500)A-LP2-DIF-35 中功率热传感器 (300mW-500W)
制造商: Ophir Model: L40(500)A-LP2-DIF-35 P/N: 7Z02797 - 报价要求
- 报价要求
- 联系
Absorber Type: LP2 + Diffuser
Aperture: Ø35mm
Spectral Range: 0.44-2.2µm
Power Range: 300mW-500W
Energy Range: 100mJ-2,000J
Dimensions: 90 L x 90 W x 45 D (mm)
Max Pulse Energy: 2,000J
Max Average Power Density: >150kW/cm²
Response Time: 2.5 s
Max Energy Density (for <100ns): 3J/cm²
Max Energy Density (for 2ms): 20J/cm²
Max Average Power: 500W
Compliance: CE, UKCA, China RoHS
