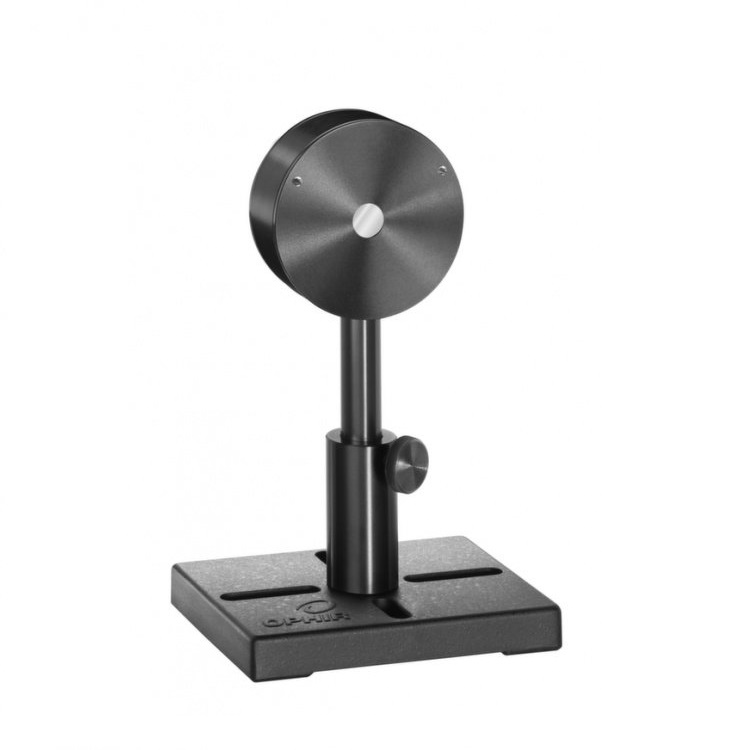

Ophir PE9-C 激光功率传感器

Absorber Type: metallic

Aperture: Ø8mm

Spectral Range: 0.15-12µm

Energy Range: 0.2µJ-1mJ

Maximum Frequency: 25000Hz

Dimensions: Ø62 W x 21 D (mm)

Max Pulse Energy: 1mJ

Max Average Power Density: 30W/cm²

Max Pulse Width: 20μs

Damage Threshold (for <100ns): 0.1J/cm²

Damage Threshold (for 2ms): 6J/cm²

Max Average Power: 2W

Compliance: CE, UKCA, China RoHS

Datasheet
