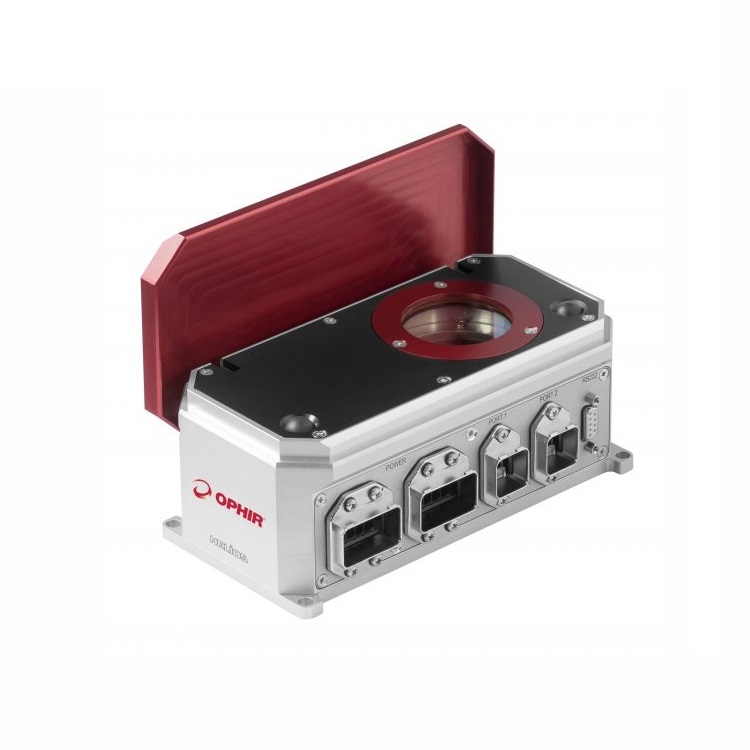

Ophir Helios Plus - Profinet 高功率热传感器 (50W-12kW)

Absorber Type: LP2, absorption ~94%

Aperture: Ø50mm

Spectral Range: 450-550nm, 900-1100nm

Power Range: 50W-12kW

Energy Range: 100J – 5kJ

Backscattered Power: N.A.

Dimensions: 200 Lx145 Wx144 H (mm) - Open, 200 L x 122 W x 84 H(mm)-Closed Connectors: M12, Mini 7/8”, DB9

Max Pulse Energy: N.A.

Max Average Power Density: N.A.

Response Time: 3 s

Max Energy Density (for <100ns): N.A.

Max Energy Density (for 2ms): 4kJ/cm²

Max Average Power: 12kW

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS

Details

Video


Datasheet
