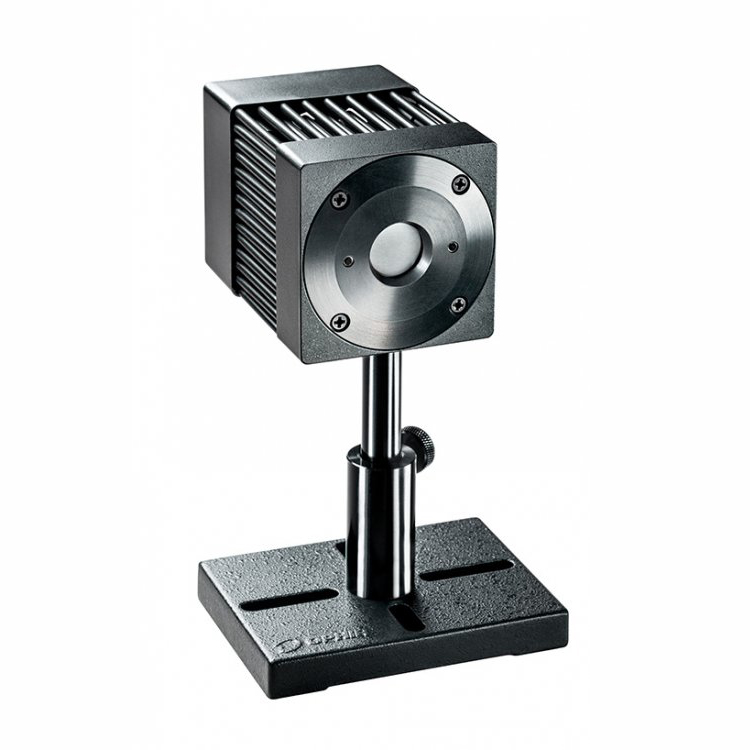

Ophir F80(120)A-CM-17 中低功率热传感器 (100mW-120W)

Absorber Type: CM

Aperture: Ø17.5mm

Spectral Range: 0.248μm-9.4μm

Power Range: 100mW-120W

Energy Range: 50mJ-200J

Dimensions: 64 L x 64 W x 93 D (mm)

Max Pulse Energy: 200J

Max Average Power Density: 35kW/cm²

Response Time: 2 s

Max Energy Density (for <100ns): 0.7J/cm²

Max Energy Density (for 2ms): 45J/cm²

Max Average Power: 120W

Compliance: CE, UKCA, China RoHS

Details

Datasheet
