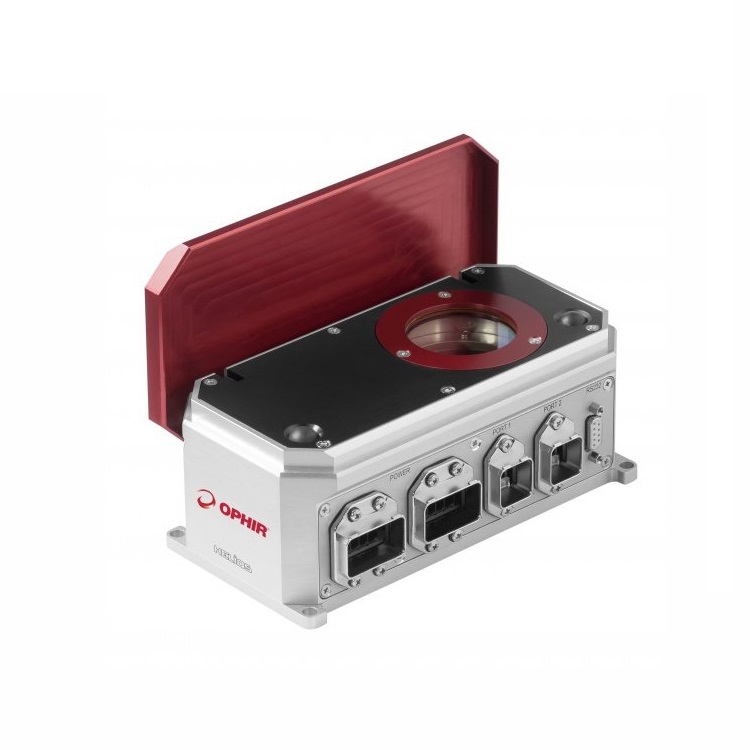

Ophir Helios Plus – EtherCAT 高功率热传感器 (50W-12kW)
制造商: Ophir Model: Helios Plus – EtherCAT P/N: 7Z07105 - 联系
Absorber Type: LP2, absorption ~94%
Aperture: Ø50mm
Spectral Range: 450-550nm, 900-1100nm
Power Range: 50W-12kW
Energy Range: 100J – 5kJ
Backscattered Power: N.A.
Dimensions: 200 Lx123 Wx144 H (mm) - Open, 200 L x 100 W x 84 H(mm)-Closed Connectors: AIDA, DB9
Max Pulse Energy: N.A.
Max Average Power Density: N.A.
Response Time: 3 s
Max Energy Density (for <100ns): N.A.
Max Energy Density (for 2ms): 4kJ/cm²
Max Average Power: 12kW
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
