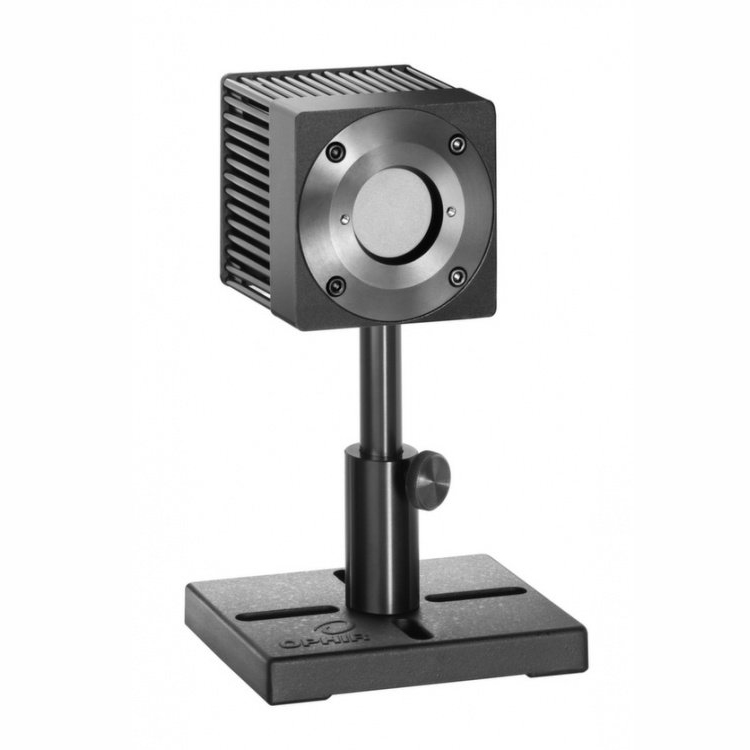

Ophir 50(150)A-BB-26-PPS BeamTrack - 激光功率/位置/尺寸热传感器 (40mW-150W)

Absorber Type: Broadband

Aperture: Ø26mm

Spectral Range: 0.19-20µm

Power Range: 40mW-150W

Energy Range: 20mJ-100J

Backscattered Power: N.A.

Dimensions: 64 L x 64 W x 64 D (mm)

Max Pulse Energy: 100J

Max Average Power Density: 12kW/cm²

Response Time: 1.5 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 150W

BeamTrack Functions: Power/Energy/Position/Size

Compliance: CE, UKCA, China RoHS

Details

Datasheet
