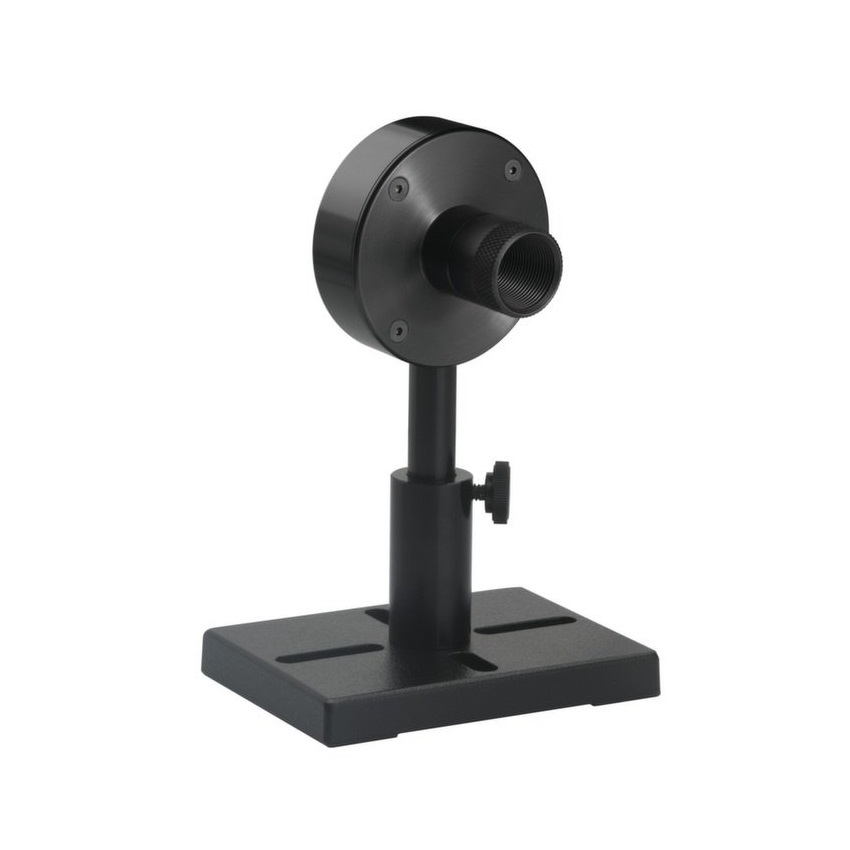

Ophir 3A-P-QUAD 高灵敏度热激光传感器 (160µW-3W)

Absorber Type: P type

Aperture: Ø12mm

Spectral Range: 0.15-8µm

Power Range: 160µW-3W

Energy Range: 30µJ-2J

Backscattered Power: N.A.

Dimensions: Ø70 W x 30 D (mm)

Max Pulse Energy: 2J

Max Average Power Density: 0.05kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 1J/cm²

Max Energy Density (for 2ms): 1J/cm²

Max Average Power: 3W

BeamTrack Functions: Power/Energy/Position

Compliance: CE, UKCA, China RoHS
