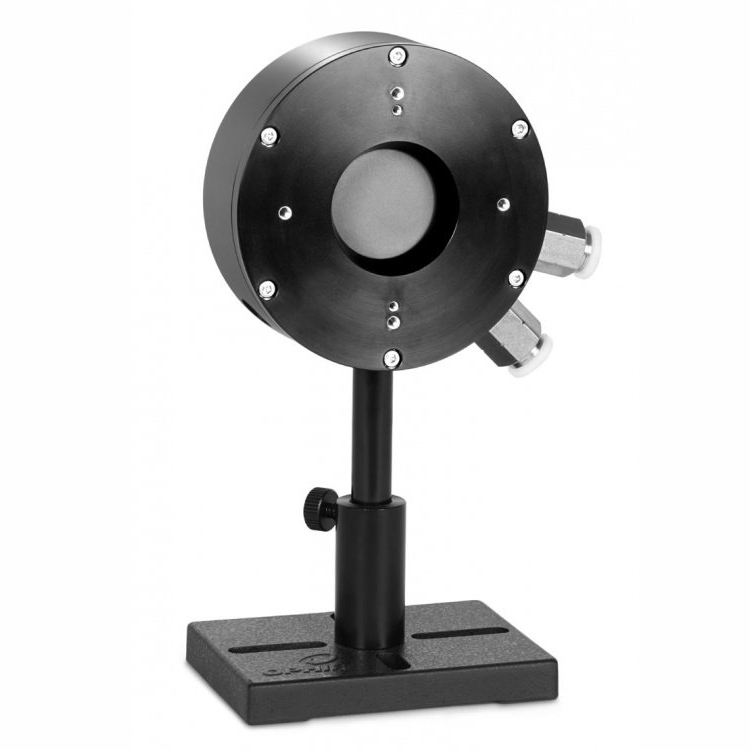

Ophir 1000W-BB-34-QUAD BeamTrack 激光功率/位置/尺寸热传感器 (5W-1000W)
制造商: Ophir Model: 1000W-BB-34-QUAD P/N: 7Z07936 - 报价要求
- 报价要求
- 联系
Absorber Type: Broadband
Aperture: Ø34mm
Spectral Range: 0.19-20µm
Power Range: 5W-1000W
Energy Range: 500mJ-300J
Backscattered Power: N.A.
Dimensions: Ø100 W x 35 D (mm)
Max Pulse Energy: 300J
Max Average Power Density: 7kW/cm²
Response Time: 2.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 1000W
BeamTrack Functions: Power/Energy/Position
Compliance: CE, UKCA, China RoHS
