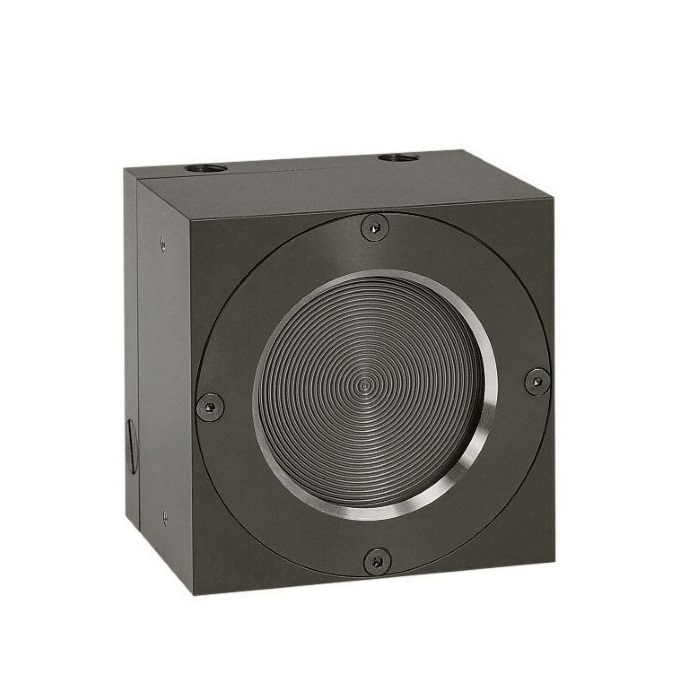

Ophir L150C-UAU OEM功率传感器 (0.2W-150W)

Aperture: Ø50mm

Spectral Range: 0.19-20µm

Power Range: 0.2W-150W

Energy Range: 80mJ-100J

Dimensions: 80 L x 80 W x 45 D (mm)

Max Average Power Density: 12kW/cm² at 150W

Response Time: 2.5s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 150W

Communication: USB

Compliance: RoHS, China RoHS

Details

Datasheet
