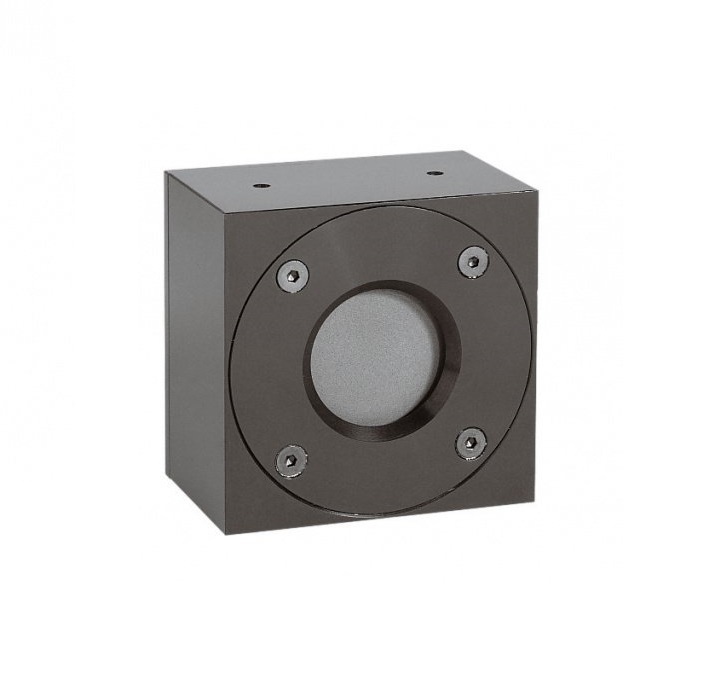

Ophir L30C-UAE OEM功率传感器 (300mW-100W)

Aperture: Ø26mm

Spectral Range: 0.19-20µm

Power Range: 300mW-100W

Energy Range: 30mJ-100J

Dimensions: 60 L x 60 W x 38 D (mm)

Max Average Power Density: 14kW/cm² at 100 W

Response Time: 1.5 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 100W heat sinked

Communication: Ethernet

Compliance: RoHS, China RoHS

Details

Datasheet
