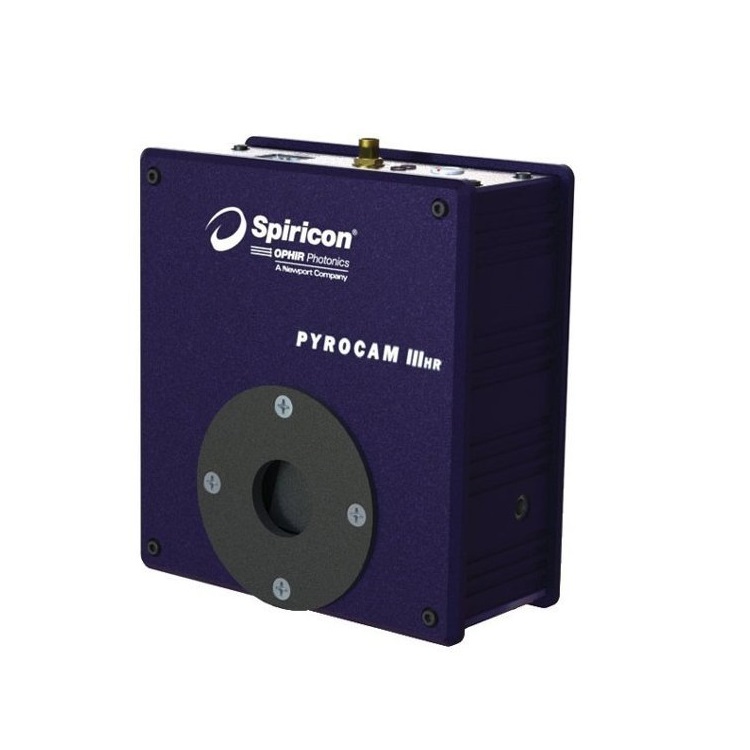

Ophir Pyrocam IIIHR 光束轮廓相机 (3 - 5µm)

Application: MIR

Wavelengths: 3 - 5µm

Beam Sizes: 1600μm - 12.3mm

Interface: GigE

Sensor Type: Pyroelectric Array

Compatible Light Sources: CW, Pulsed

Active Area: 12.8mm x 12.8mm

Number of effective pixels: 160 x 160

Effective Pixel Pitch: 80µm

Dynamic Range: 60 dB

Power: 12VDC

Power consumption: 12W

Operating temperature: 5°C to 50°C

Dimensions: 140mm H X 130mm W X 60mm D

Weight: 0.85Kg (1.83lbs)

Frame Rate at Full Resolution: 100 fps

Compliance: CE, UKCA, China RoHS

BeamGage Professional: PY-III-HR-C-MIR-PRO
