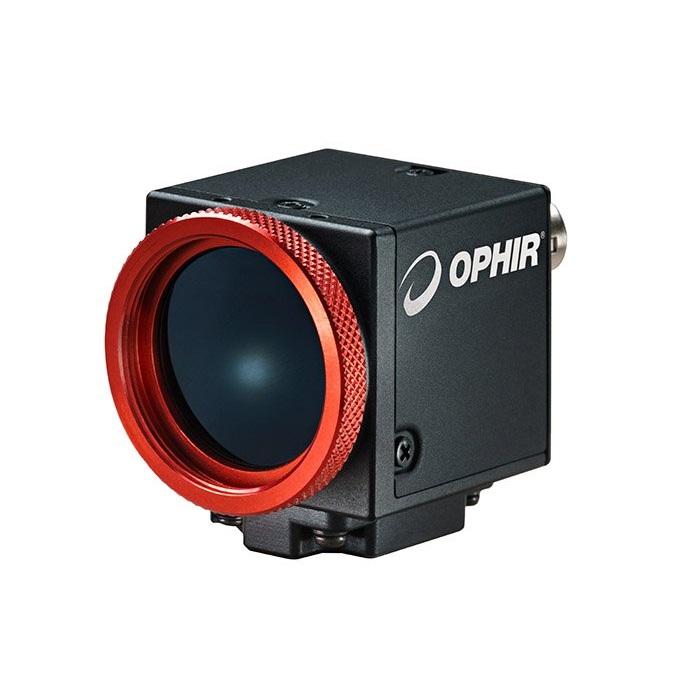

Ophir SP920s-1550 激光功率热传感器 (1440-1605nm)

Wavelengths: 1440-1605nm

Beam Sizes: 600μm - 5.3mm

Pixel spacing: 4.4μm x 4.4μm

Interface: USB 3.0

Sensor Type: Phosphor-Coated Silicon CCD

Compatible Light Sources: CW, Pulsed

Active Area: 5.3mm x 7.1mm

Number of effective pixels: 1624 x 1224

Dynamic range: ~30 dB

Gain control: 0 dB to 24 dB

Frame Rate at Full Resolution: 15 fps

Ambient operating temperature: 0 - 50° C

Dimensions: 29mm x 29mm x 29.5mm

Compliance: CE, UKCA, China RoHS

BeamGage Standard: BGS-USB3-SP920s-1550
