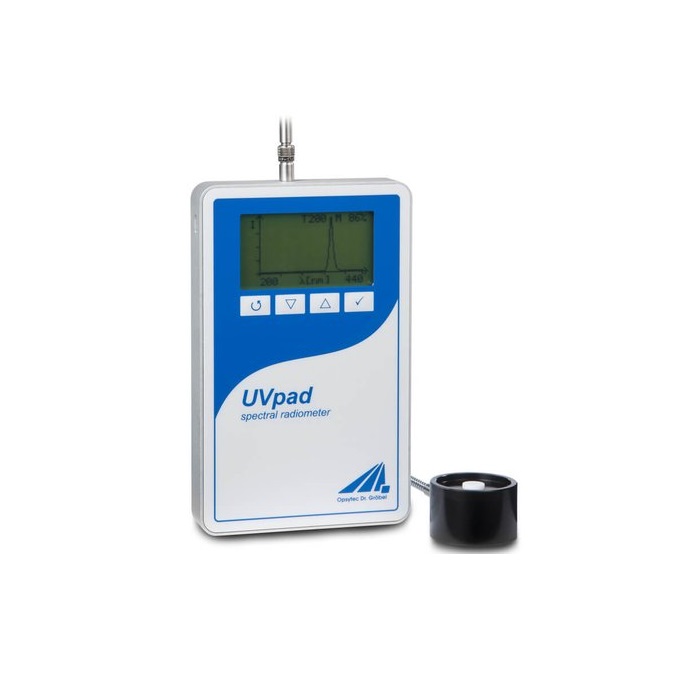

Opsytec Dr.Grobel UVpad E 光谱辐射计 (2~5000mW/cm², 240~480nm)
制造商: Opsytec Dr.Grobel Model: UVpad E P/N: 670027 来源: Germany 保障: 12 Month - 报价要求
- 联系
Spectral range: 240 - 480 nm ± 5 nm
Spectral bandwidth: 2 nm
Pixel distance: ~ 0,5 nm
Irradiance meas. range (typ.): 2 - 5000 mW/cm²
Resolution: 0,01 mW
Dose measurement range: 0,01 mJ/cm² - 600 J/cm²
Data storage rate: 100 Hz to 1 Hz, adjustable
Measurement time: 5 s to 8 min, depeding on data storage rate
Memory: 50 measurements
Sampling rate: 10 ms - 10 s
Display: graphical, 128 x 64 px
Dimensions: 160 x 100 x 14,4 mm³
Weight: ~ 500 g
Operation temperature: 0 to 60 °C
Storage temperature: -10 to 60 °C
Humidity: < 80% non-condensing
Batteries: 3 x CR2032
Interface: USB
System requirements: Windows 10 or 7, 300 MB HDD, 1 GB RAM
Calibration: traceable to PTB/NIST
Cosine correction: yes
DELIVERY
UVpad E, optical fibre 1.5 m, external sensor type 1 (if not secified), manufacturers certificate of calibration, software, USB cable and case
Datasheet
Manual
Features
Spectral radiometric measurements without a PC
• Additional use on PC as spectrometer
• Designed for UV measurements
• Internal memory for 50 measurements with irradiance profile
• 240 - 480 nm (total UV spectral range)
• Spectral resolution 2 nm
• 0.5 nm pixel distance & 512 photo diodes
