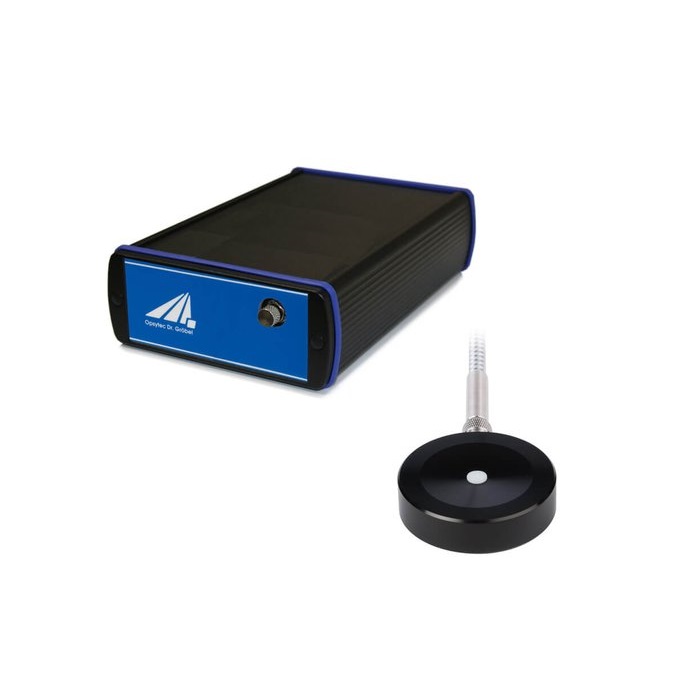

Opsytec Dr.Grobel SR900 光谱辐射计 (0,01~10W/cm², 200~1100nm)

Spectral range: 200 - 1100 nm

Versions: measurement range

High-Power: ~ 0,01 - 10 W/cm²

Spectral resolution: 0,44 nm (pixel pitch)

Spectral bandwidth: 2,3 nm (FWHM)

Gratting: 300 l/mm, holografic

Focal length: 75 mm

Blaze wavelength: 250 nm

Detector: SI

Pixel size: 14 x 200 µm

Number of pixel: 2048

Resolution: 16 bit

Integrations time: 0,1 ms to 60 s

Max. Dynamic range: 10^5:1 with 3 measurements

Interface: USB

Trigger: rear connection

Dimensions: 177 x 125 x 45 mm

Weight: 1.2 kg

Supply voltage: 5 V, 500 mA

Power: < 3 W

Operating temperature: 5 to 40 °C

Storage temperature: -10 to 60 °C

Humidity: <80%, non-condensating

System requirements: Win 7/10, min 1 GB RAM


DELIVERY

Spectroradiometer SR900, USB cable

Detail

Datasheet


Features

• Spectral range 200-1100 nm

• Nearly scatter-free grid with 300 lines/mm

• Spectral resolution 0.4 nm and 2,3 nm bandwidth

• Order filtering

• Spectral software for the color measurement, radiometric and effects-based measurements

• Simple validation by means of the user concept

• Wide range of accessories
