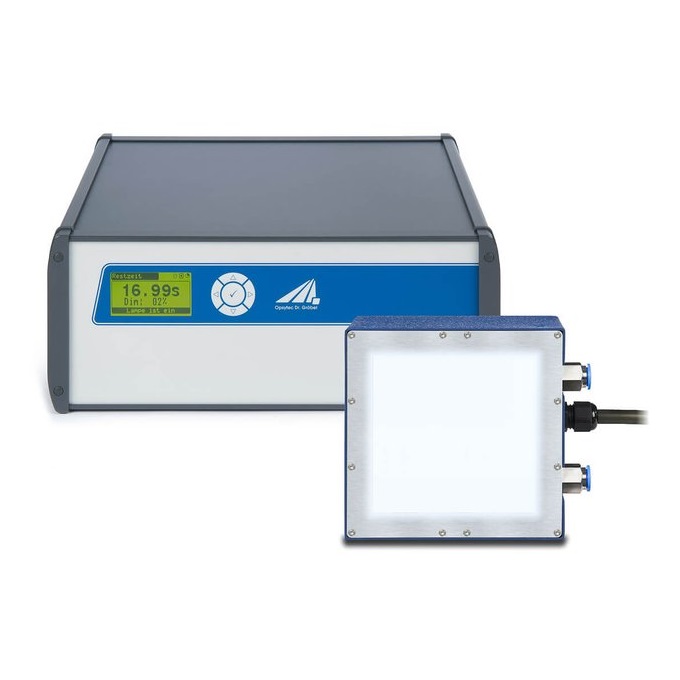

Opsytec Dr.Grobel LEDControl LED Control (UVLED 1 Spot)

Number of UVLED-Spots: 1 (LedControl)

Functions: 2 to 100%, each spot separate timer, continuous operation Master /slave mode

Display: graphical, 128 x 64 px

Connections: Interlock

Interface option dimming in (0-10V), common Trigger (IN/OUT), common

Terminals, Interface option: Galvanically isolated

Signals, Interface option: 24 V, 5 mA max

Programming, optional: RS485, RS232 or USB

Dimensions: 305 x 358 x 145 mm

Cooling: Aircooling

Operating temperature: 5 to 40 °C

Storage temperature: -10 to 60 °C

Humidity: < 80%, non-condensing

Power (el.): dep. on type, 500 W - 6500 W

Mains < 2500 W: 100 - 240 V, 50/60 Hz

Mains > 2500 W :3 x 340-550 VAC, 50/60 Hz

Internal security circuit: Over-temperature, LED N.C

Scope of delivery

LEDcontrol
