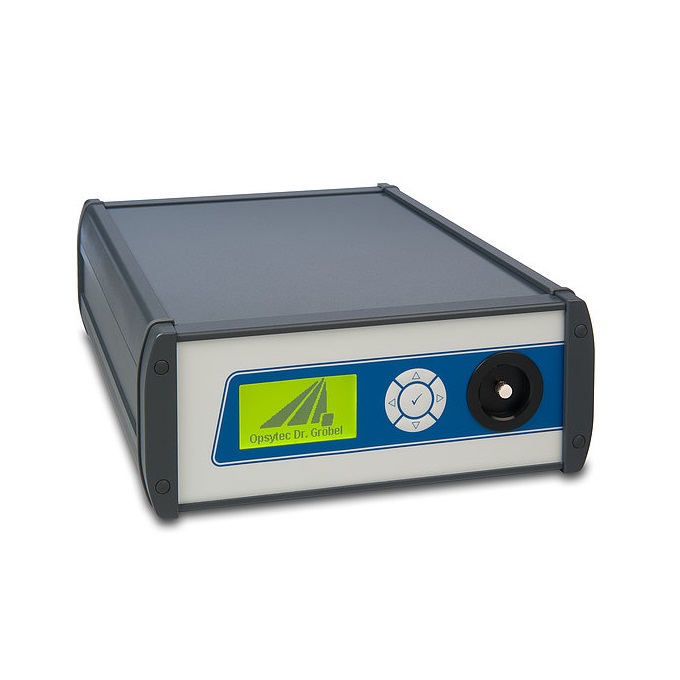

Opsytec Dr.Grobel iSR900 工业光谱辐射计 (200~1100nm)

Spectral range: 200 - 1100 nm

Spectral resolution: 0,44 nm (pixel pitch)

Spectral bandwidth: 2,3 nm (FWHM)

Grating: 300 l/mm, holografic

Focal length: 75 mm

Blaze wavelength: 250 nm

Detector: SI

Pixel size: 14 x 200 µm

Number of pixel: 2048

Resolution: 16 bit

Integrations time: 0,1 ms to 60 s

measurement duration, typ.: 300 ms

Interface: USB, RS232 or RS485

Trigger: I/ O, rear connection

Dimensions: 250 x 320 x 100 mm

Weight: 3,5 kg

Supply voltage: 230 V, 50 Hz

Power: < 25 W

Operating temperature: 5 to 40 °C

Storage temperature: -10 to 60 °C

Humidity: <80%, non-condensating

Communication: ASCII with CRC-16


DELIVERY

Industrial Spectroradiometer iSR900

Detail

Datasheet


Features

Spectral range 200-1100 nm

Nearly scatter-free grid with 300 lines/mm

Spectral resolution 0.4 nm and 2,3 nm bandwidth

Order filtering

Radiometric and effect-related measurements

USB, RS485 or RS232
