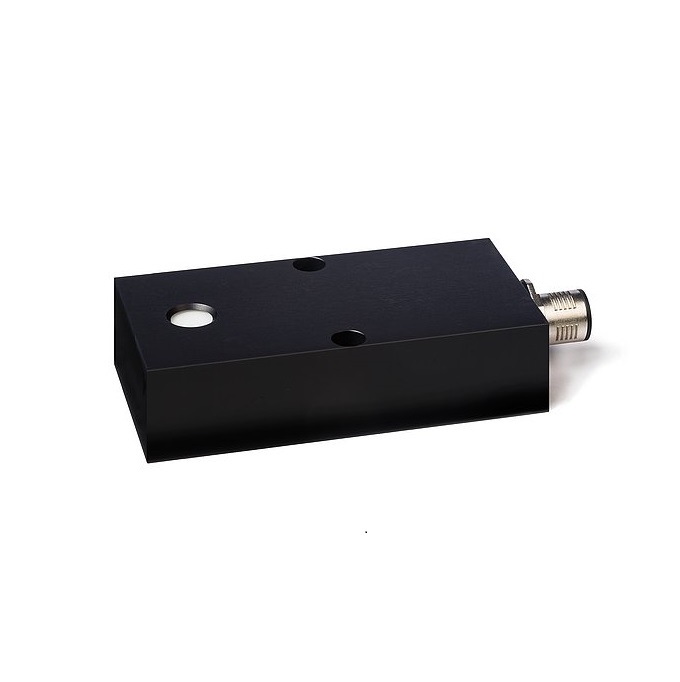

Opsytec Dr.Grobel UVC-PLC PLC Sensors with Analog Output UVC (200~280 nm, 0~100 mW/cm²)

Partnumber Formula: PLC [S] [V] [A] [M]


Operation voltage: 24 VDC

Current input: < 15 mA

Signal output: 0 - 10 V

Measuring range: 0 - 100 mW/cm²

Dimensions: 80 x 40 x 20 mm

Weight: 150 g

Connector: 5-pole M12

Operation temperature: 0 to 40 °C

Storage temperature: -10 to 40 °C

Humidity: < 80% non-condensing


Delivery

- PLC sensor, factory calibration certificate

>> Please specify type when ordering.

- Optional

> Shutter

> Panel meter RM-32

Detail

Datasheet


Features

• Direct PLC operation

• Selectable signal output

• Long-term stability

• Recalibrateable sensors

• Integrated electronics

• Selectable measurement ranges

• Shutter & mount available
