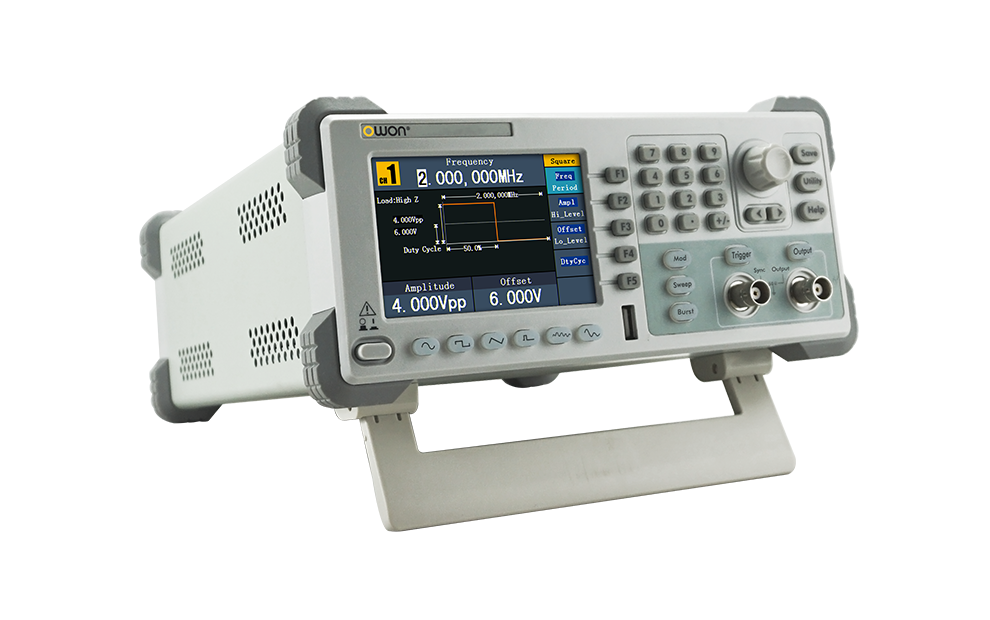

OWON AG1011 单通道任意波形发生器(10MHz,125MS / s,1CH)

Channel: single

Frequency Output 10MHz

Sample Rate 125MS/s

Vertical Resolution 14 bits

Waveform Standard  Sine, Square, Pulse, Ramp, and Noise Arbitrary

Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform.

Frequency  (resolution 1μHz)

Sine 1μHz - 10MHz

Square 1μHz - 5MHz

Pulse 1μHz - 5MHz

Ramp 1μHz - 1MHz

Noise 5MHz (-3dB) (typical)

Arbitrary Waveform 1μHz - 5MHz

Memory 64M byte

Communication Interface USB device

Dimension  (W×H×D) 235 × 110 × 295 (mm)

Weight  (without package) 3.00 kg


Accessories: Power Cord, CD Rom, Quick Guide, USB, Q9 Cable
