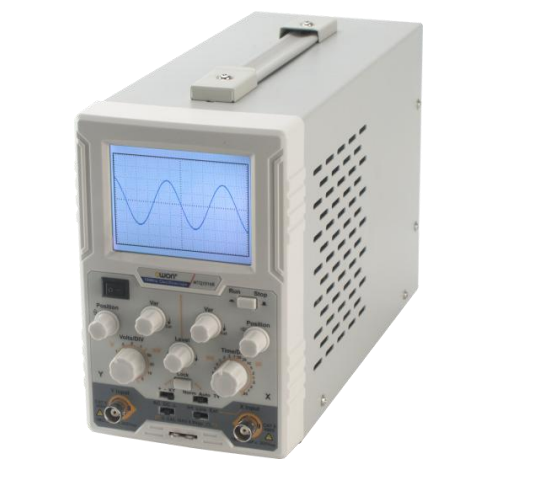

OWON AS201 模拟类比数位示波器(20MHz,100MS / s,1通道)

  • 制造商: OWON
    Model: AS201
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: OWON

Model: AS201

Origin: China

Warranty: 12 months


- Bandwidth DC: DC:0~20MHz, AC: 10 Hz~20MHz

- Channel 1

- Horizontal system

Sample Rate 100MS/s

Interpolation (Sinx)/x

Scanning speed

(S/DIV) 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5

relay time accuracy ±100 ppm

Trimming Ratio ≧2.5:1

- Vertical system

Sensitivity 5 mV/DIV~10 V/DIV

Displacement ±10DIV

Analog bandwidth 10 MHz

Low Frequency ≥10 Hz (at input, AC coupling, -3 dB)

Rise time (at input, Typical)

≤ 30 ns

Trimming Ratio ≧2.5:1

- Input coupling DC, AC , Ground

- Input impedance 1 MΩ±2%, in parallel with 20 pF±5 pF

- Max. input voltage 400V (DC+AC, PK - PK)

- X-Y Model

Sensitivity X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV

Bandwidth(-3dB) DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz

- Trigger

Trigger level range ±4 DIV from the screen center

Trigger level Accuracy (typical) ±0.3 DIV

Trigger Sources Int, Line, Ext

Trigger Mode Norm, AUTO, TV

Edge trigger Rising, Falling

Video Trigger Support standard NTSC, PAL and SECAM broadcast systems

Sample Rate / Relay Time ±100ppm

Trigger lock support

Ext. Trigger Input Impedance 1 MΩ±2%, in parallel with 20 pF±5 pF

Ext. Trigger Max. Input Voltage 400Vpp

- Trigger Output of the probe compensator

Output Voltage (Typical) Square, 0.5Vpp±2%

Frequency (Typical) Square wave of 1 kHz(±1%)

Display 3.7" Colored LCD (Liquid Crystal Display)

Power Supply 100V - 240V AC, 50/60Hz, CAT II

Power Consumption <15W

Fuse 1A, T class, 250V

Dimension (W x H x D) 117 x 192 x 288 mm

Device Weight About 1.8 kg

Accessory

Power Cord, Manual, Probe, Probe Adjust
