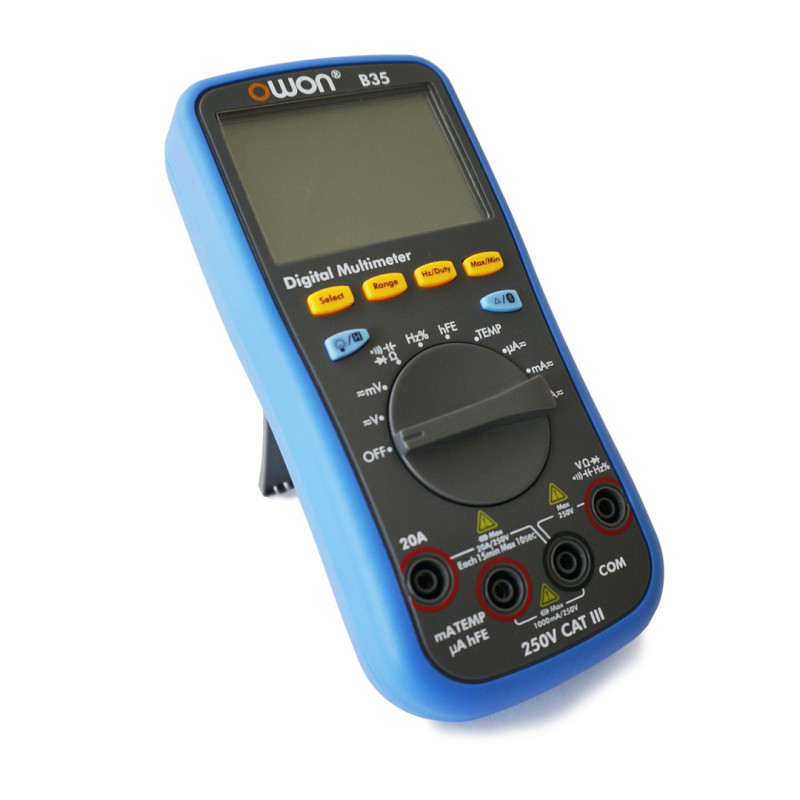

OWON B35 Multimeter

Measurement Range

DC Voltage

mV 60.00mV/600.0mV

V 60.00mV/600.0mV/6.000V/60.00V/ 600.0V/1000V

AC Voltage

mV 60.00mV/600.0mV

V 60.00mV/600.0mV/6.000V/60.00V/ 600.0V/750V

DC Current

μA 600.0μA

mA 600.0μA/6.000mA/60.00mA/600.0mA/6.000A

A 20.00A

AC Current

μA 600.0μA

mA 600.0μA/6.000mA/60.00mA/600.0mA/6.000A

A 20.00A

Resistance 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/10.00MΩ

60.00MΩ

Capacitance

40.00nF

400.0nF/4.000μF/40.00μF

400.0μF/4000μF

Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/ 9.999MHz

Duty Ratio

0.1%~99.9% typical value: Vrms=1V, f=1kHz

0.1% ~99.9%≥1kHz?

Temperature

-50°~C+400°C

-58°F~+752°F

Display 6000 count

Frequency (40-400)Hz

Shift Rate on DMM 3  times  /  s

Shift Rate on App 2  times  /  s

Simulated Chart Shift Rate on DMM 30  times  /  s

Included Accessories

Multimeter Lead

K-type Thermocouple

Manual
