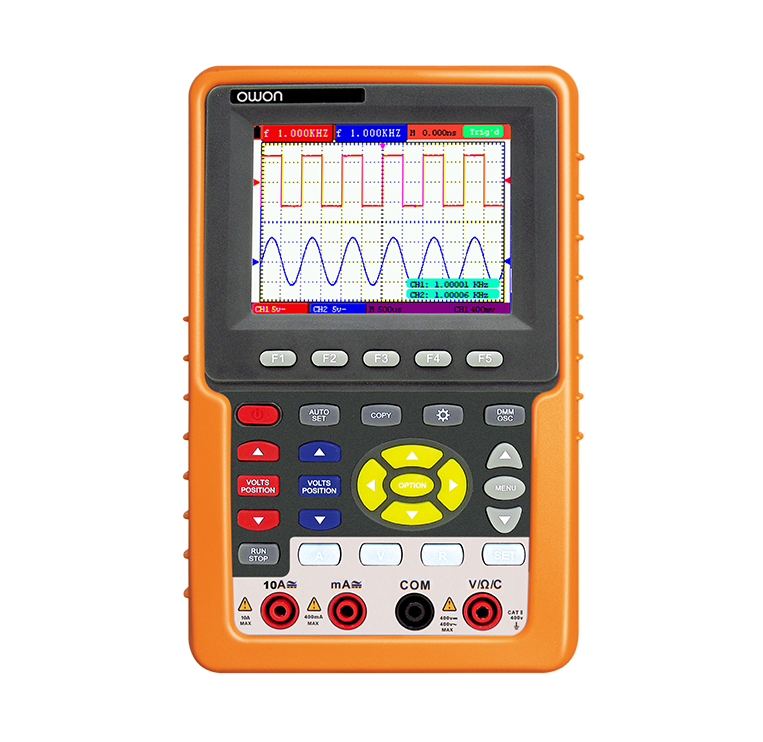

Owon HDS1021M-N 手持式数字示波器,带万用表,可充电式锂离子电池

  • 制造商: OWON
    Model: HDS1021M-N
    来源: China
    • 报价要求 报价要求
  • Price (exclude tax) 5,640,000 VND
    Price (include tax) 6,204,000 VND
  • 现货: 1
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Bandwidth: 20 MHz
Sample rate(Real time): 500 MS/s
Horizontal Scale(S/div): 5 ns/div ~ 100 s/div, step by 1~2.5~5
Rise time (at input, typical): 17.5 ns
Channels: Single
Display: 3.7 inch color display with TFT panel (640×480 pixels)
Input impedance: 1 MΩ ± 2% in parallel with 15 pF ± 5 pF
Probe attenuation factor: 1X,10X,100X,1000X
Max. input voltage: 400 V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Record length: Max. 6000 points on each channel
Interpolation: (sin x)/x
Input coupling: DC, AC, GND
Acquisition modes: Sample, Peak Detect and Average
Vertical resolution (A/D): 8 bit
Vertical sensitivity: 5 mV/div ~ 5 V/div(at input)
DC gain accuracy: ±3%
DC accuracy (Average): Average > 16: ± (3% reading + 0.05 div) for ΔV
Trigger type: Edge, Video, Alternate
Trigger mode: Auto, Normal, Single
Trigger level: ±6 divisions from screen center
Waveform math: +, -, ×, ÷, FFT
Waveform storage: 4 waveforms
Communication interface: USB
Cymometer: Available
Power supply: 100 V - 240 V AC, 50/60 Hz
Full scale reading: 3 3/4 digits (Max.4000-count)
Input Impedance: 10 MΩ
Capacitance: 51.2 nF - 100 uF:± (3% ± 3 digit)
Voltage: VDC : 400 mV, 4 V, 40 V, 400 V, 1000 V: ± (1% ± 1 digit); max input: DC 1000 V
VAC: 4 V, 40 V, 400 V: ± (1% ± 3 digits), 750 V: ± (2% ± 3 digits);
Frequency : 40 Hz - 400 Hz; max input: AC 750 V (virtual value)
Current: DC: 40 mA, 400 mA: ± (1.5% ± 1 digit), 20A: ± (3% ± 3 digits)
AC: 40 mA: ± (1.5% ± 3 digits), 400 mA: ± (2% ± 1 digit), 20 A: ± (5% ± 3 digits)
Impedance: 400 Ω: ± (1% ± 3 digits), 40 ΚΩ - 4 ΜΩ: ± (1% ± 1 digit), 40 MΩ: ± (1.5% ± 3 digits)
Ordering Information:
1 - Battery
1 - AC/DC Adapter
1 - Oscilloscope probe
2 - Multimeter test leads
1 - USB Mass storage connect cable
1 - Extension module
1 - Probe Adjustment tools
1 - USB/RS-232C communication cable
1 - User Manual
1 - Software CD-ROM
1 - Output terminal


Option:
- Owon HDSNADAPTER Power Adapter Cord for Handheld Digital Oscilloscopes
- Owon HDSMCASE Metal case for HDS Series Oscilloscopes
- Owon HDSSBAG Soft Carrying Bag for HDS Series Oscilloscopes
