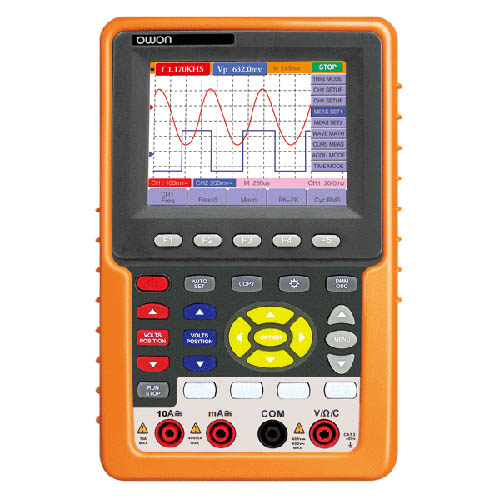

OWON HDS4202M-N 手持数字示波器(200MHz,2通道)

  • 制造商: OWON
    Model: HDS4202M-N
    来源: China
    • 报价要求 报价要求
  • Price (exclude tax) 17,296,000 VND
    Price (include tax) 19,025,600 VND
  • 现货: 1
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications
Bandwidth    200MHz
Sample rate(Real time)    1GS/s
Horizontal Scale(S/div)    2ns/div~100s/div, step by 1~2~5
Rise time (at input, typical)    ≤5.8ns
Channels    Dual
Display    3.7 inch color display with TFT panel (640×480 pixels)
Input impedance    1MΩ±2%in parallel with 15pF±5pF
Probe attenuation factor    1X,10X,100X,1000X
Max. input voltage    400V (PK-PK) DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1
Record length    Max.6000 points on each channel
Interpolation    (sin x)/x
Input coupling    DC, AC, GND
Acquisition modes    Sample, Peak Detect and Average
Vertical resolution (A/D)    8 bit (2 channels simultaneously )
Vertical sensitivity    5mV/div~5V/div(at input)
DC gain accuracy    ±3%
DC accuracy (Average)    Average>16:±(5% reading+0.05div) for ΔV
Trigger type    Edge, Video, Alternate
Trigger mode    Auto, Normal, Single
Trigger level    ±6 divisions from screen center
Waveform math    +, -, ×, ÷, FFT
Waveform storage    4 waveforms
Communication interface    USB
Cymometer    Available
Power supply    100V-240V AC, 50/60Hz
Multimeter Specification
Full scale reading    Diode
Input Impedance    On/Off measurement
Capacitance    51.2nF-100uF:±(3%±3 digit)
Voltage    VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V,
VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
Current    DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
Impedance    400Ω:±(1%±3digit), 40Ω
