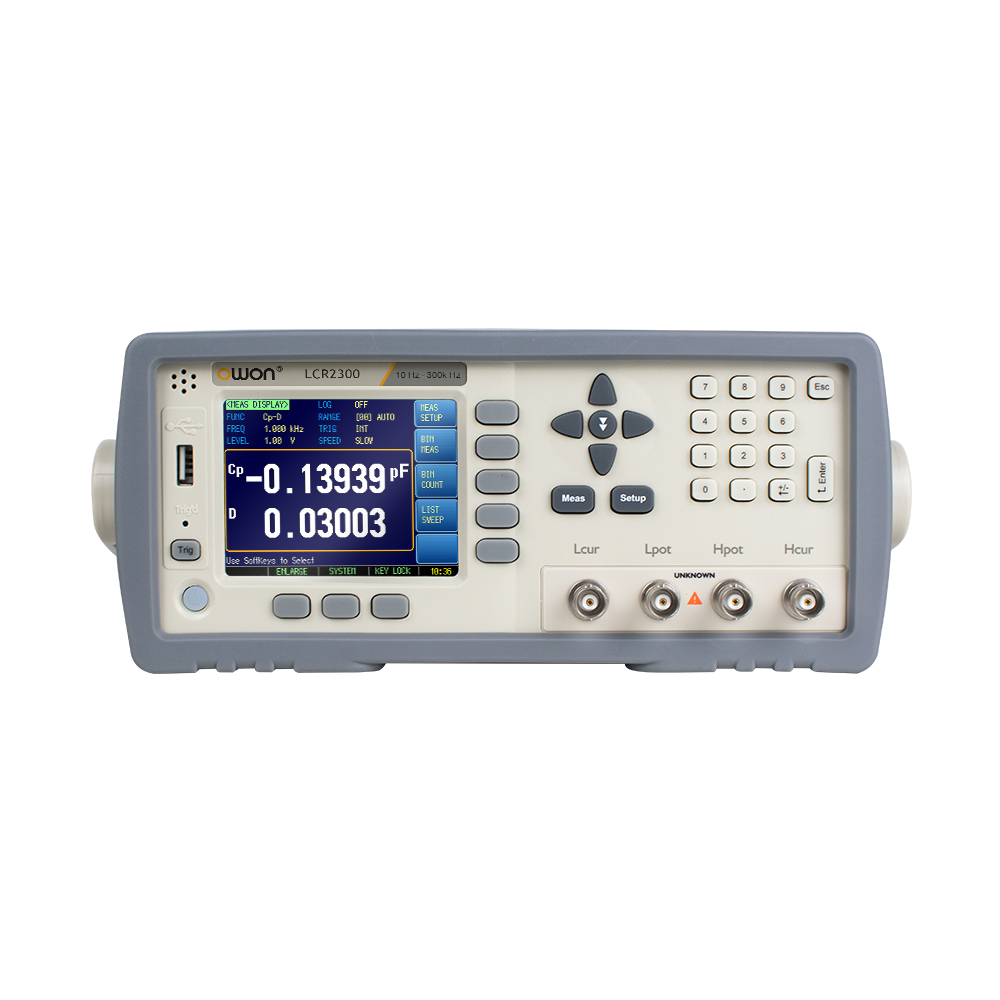

OWON LCR2300 LCR Meter (10Hz~300kHz )

Test Function: Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, DCR

Monitor Parameter: Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Lac, △, △%

Test Frequency: 10Hz~300kHz

Basic Accuracy: 0.05%(Slow/Med), 0.1%(Fast)

Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Display Range:

L:0.00001uH ~ 9999.99H

C:0.00001pF ~ 9999.99mF

R,X,Z:0.00001Ω ~ 99.9999MΩ

B,G:0.01nS~999.999S

D:0.00001 ~ 9.99999

Q:0.00001 ~ 99999.9

θd: -179.999°~179.999°

θr: -3.14159 ~ 3.14159

%: -999.999% ~ 999.999%

Output impedance : 30Ω、50Ω、100Ω

Ranging: Auto, Hold and Nominal range. Total 9 Ranges.

DC Bias ( Internal ): -2.50V ~ +2.50V

Correction Function: OPEN/SHORT

Beep Feature: OFF/PASS/FAIL and HIGH/LOW tone

Memory: built-in 10 files

Trigger Mode: Internal, Manual, External and Remote Trigger.

Interface: USB Host / Device, RS232, Handler

Display: 3.5 inch LCD
