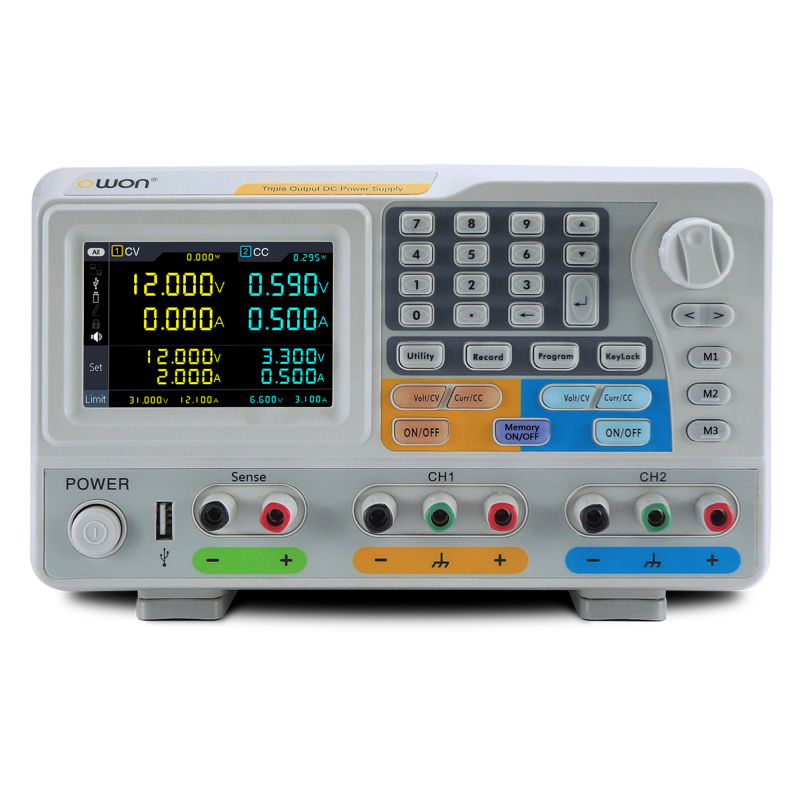

OWON ODP3063 三通道可编程线性直流电源 (30V, 6A)

Channel 3 independent controllable channels
Max output Power 198W
Output Range
0-30V / 6A x 2-CH
0-6V / 3A
Load Regulation
Voltage ≤0.01% + 3mV
Current ≤0.01%+3mA
Line Regulation
Voltage ≤0.01%+3mV
Current ≤0.01%+3mA
Settings Resolution
Voltage 1mV
Current 1mA
Read Back Resolution
Voltage 1mV
Current 1mA
Settings Accuracy
(within 12 months)
(25℃ ± 5℃) Voltage ≤0.03%+10mV Current ≤0.1%+8mA ≤0.1%+5mA Read Back Accuracy
(25℃ ± 5℃) Voltage ≤0.03%+10mV Current ≤0.1%+8mA ≤0.1%+5mA Noise and Ripple
(20Hz - 20MHz) Voltage(Vp-p) ≤4mVp-p ≤3mVp-p
Voltage(rms) ≤1mVrms ≤1mVrms
Current(rms) ≤5mArms ≤4mArms
Output Temperature Coefficient (0℃ - 40℃)
Voltage ≤0.03%+10mV
Current ≤0.1%+5mA
Read Back Temperature Coefficient Voltage ≤0.03%+10mV
Current ≤0.1%+5mA
Parallel Settings Accuracy
Voltage ≤0.02%+5mV
Current ≤0.1%+30mA
Programmable Output Storage 10 groups
Time Setting Second Data-logging Function
(capacity) 10K groups of voltage / current / power data Working
Temperature 0 - 40℃ Communication Interface USB, RS232, and LAN
