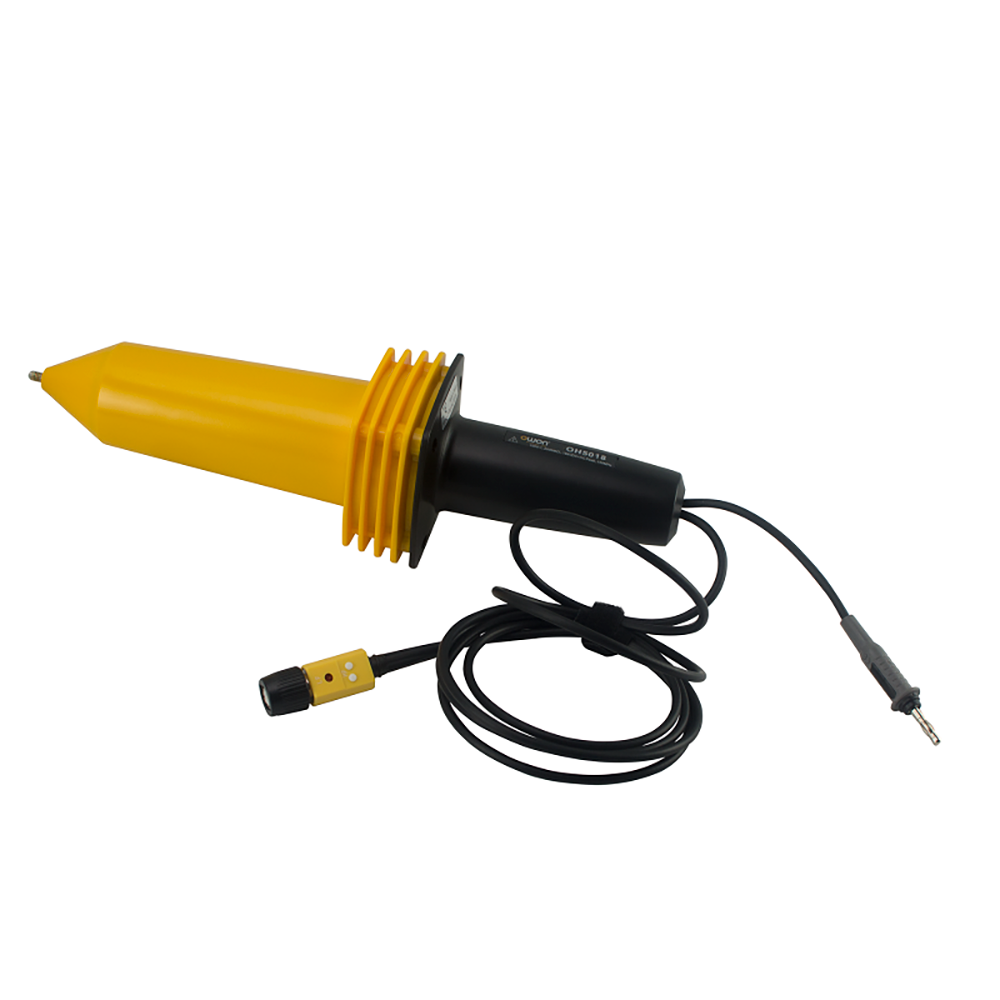

OWON OH5007 无源高压探头 (10kV, 50MHz)

Max working voltage: DC: 0~10kV, AC (rms), 0~7kV, Vpp; 0~20kV(pulse)

Bandwidth: 50MHz.

Noise: > 60dB(1KHz), > 50dB (1Mhz)

Attenuation Ratio: 1:1000

Accuracy: DC± 3% (DC-10KV)

Input impedance: 100MΩ +5%

Input capacitance: 3pF + 0.5pF

Cable length: 2m±0.2m

Temperature coefficient: <200ppm/C

Operating temperature: 0~50C

Volume: 340mm x80

Weight: 250g
