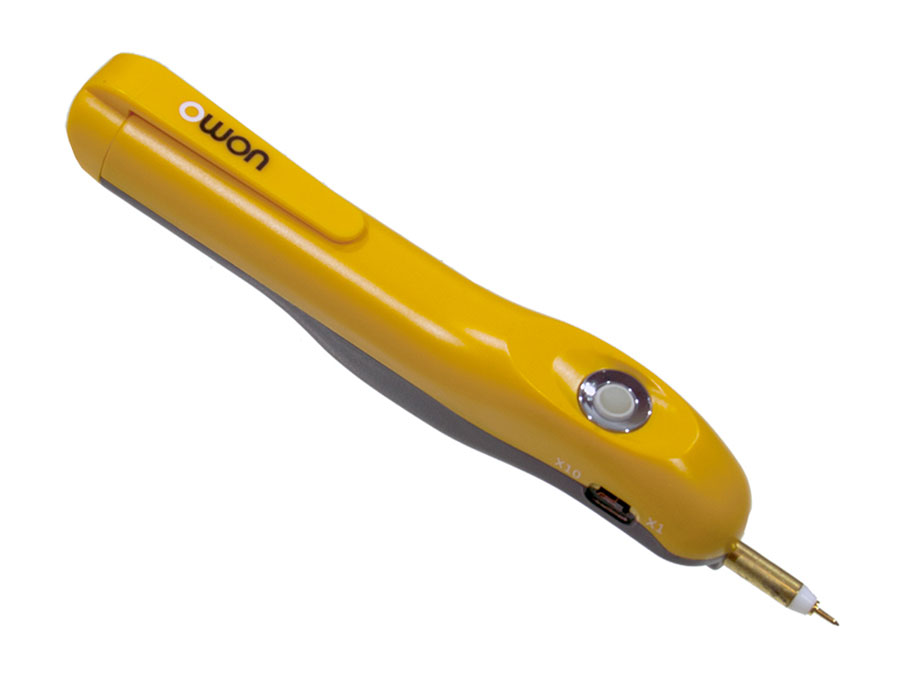

OWON RDS1021I 笔型示波器 (25MHz, 1CH, 400V)
制造商: OWON Model: RDS1021I 来源: China 保障: 12 Month - 报价要求
- 联系
Specifications
Bandwidth 25MHz
Sample rate 100MS/s
Time base ( s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Rise time 14ns
Record length 5K
Input coupling DC, AC , and GND
Input impedance 10MOhm±2% (X 10), 1MOhm±2% (X1)
Input capacity 20pF±5pF
Max input voltage 400V ( PK - PK) (DC + AC, PK - PK)
Communication interface: USB2.0
Dimensions: (W×H×D) 150 × 20 × 18 (mm)
Weight 0.27 kg
