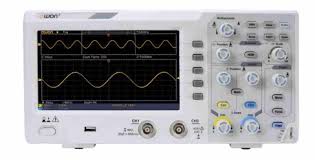

OWON SDS1052 Digital Oscilloscope (50MHz, 500MS/s, 2CH, 10K record length)

Bandwidth: 50MHz

Sample Rate: 500MS/s

Horizontal Scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5

Channel: 2

Display: 7" color LCD, 800 x 480 pixels

Input Coupling: DC, AC , and GND

Vertical Resolution (A/D): 8 bits (2 channels simultaneously)

Vertical Sensitivity: 5mV/div - 5V/div (at input)

Trigger Type: Edge, Video

Trigger Mode: Auto, Normal, and Single

Waveform Math: +, -, x, ÷, invert, FFT

Fuse: 2A, T class, 250V

Dimension (W x H x D): 301 x 152 x 70 mm

Device Weight: 1.10 kg


Accessories: Power Cord, CD Rom, Manual, USB Cable, Probe, Probe Adjustment, Soft Bag
