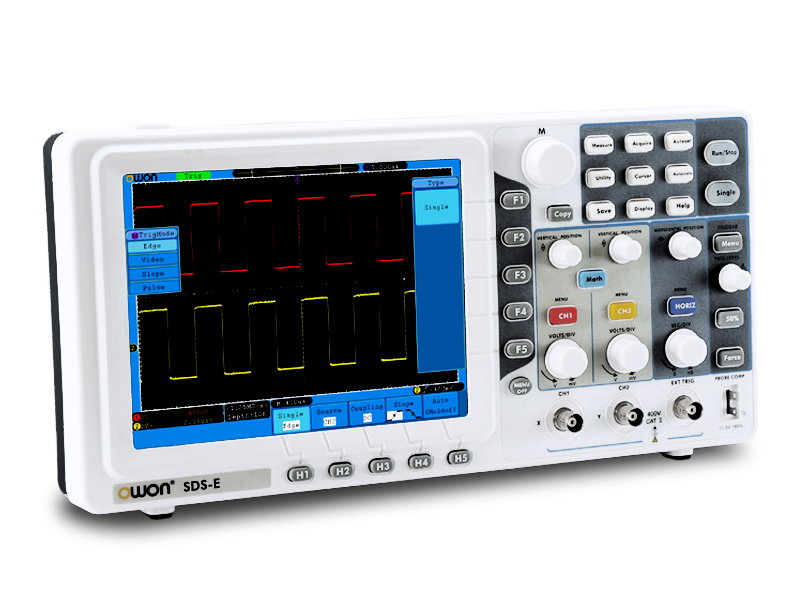

OWON SDS7102E 数字示波器

Bandwidth: 100MHz

Sample Rate: 1GS/s

Horizontal Scale (s/div): 2ns/div～100s/div,  step by 1~2~5

Channel: 2+1 (external)

Display:  8”color LCD, 800 x 600 pixels

Record Length:  1M (optional 10M)

Vertical Resolution (A/D): 8 bits (2 channels simultaneously)

Vertical Sensitivity: 2mV/div～10V/div (at input)

Trigger Type: Edge, Pulse, Video, Slope, and Alternate

Trigger Mode: Auto, Normal, and Single

Waveform Math: ＋, －, ×, ÷, invert, FFT

Communication Interface:  USB host, USB device, Pass / Fail, LAN, VGA (optional)

Battery: not supported

Dimension (W × H × D):  348 × 170 × 78 (mm)

Weight (without package):  1.50  kg

Accessories: Power Cord, CD Rom, Manual, USB Cable, Probe, Probe Adjustment, Soft Bag
