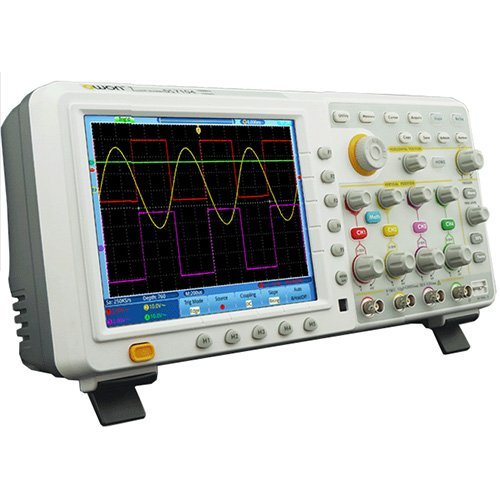

OWON TDS8204 数字示波器(200MHz,4通道)

  • 制造商: OWON
    Model: TDS8204
    • 报价要求 报价要求
  • Price (exclude tax) 27,072,000 VND
    Price (include tax) 29,779,200 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications
Bandwidth    200MHz
Sample rate(Real time)    2S/s
Horizontal Scale(S/div)    2ns/div~100s/div, step by 1~2~5
Rise time (at input, typical)    ≤5.8ns
Channels    4
Waveform Capture Rate 50,000 wfms/s
Display 8inch touch screen color LCD Input Coupling DC, AC, and GND
 Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1%
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Max Input Voltage 1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) ;
50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK)
Channel Isolation 50Hz:100:1 ; 10MHz:40:1 Interpolation sin(x)/x
Record Length 7.6M
Horizontal Scale (s/div) 2ns/div - 100s/div, step by 1 - 2 - 5
Interval (△T) Accuracy (full bandwidth) Single : ±(1 interval time + 100ppm × reading + 0.6ns),
Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D) 8 bits resolution (4 channels simultaneously) Vertical Sensitivity 2mV/div - 10V/div (at input)
Trigger Type Edge, Pulse, Video, Slope Trigger Mode Auto, Normal, Single
Trigger Level Range ±6 div from the screen center
Trigger level Accuracy (typical) ±0.3 div Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Automatic Measurement Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay  A→B↓, +Width, -Width, +Duty, -Duty
Communication Port USB host, USB device, VGA, LAN、AUX Power Supply 100 - 240 V AC, 50/60Hz, CAT II
Dimension (W×H×D) 380 × 180 × 115 (mm)
Weight (without package) 1.5 kg
