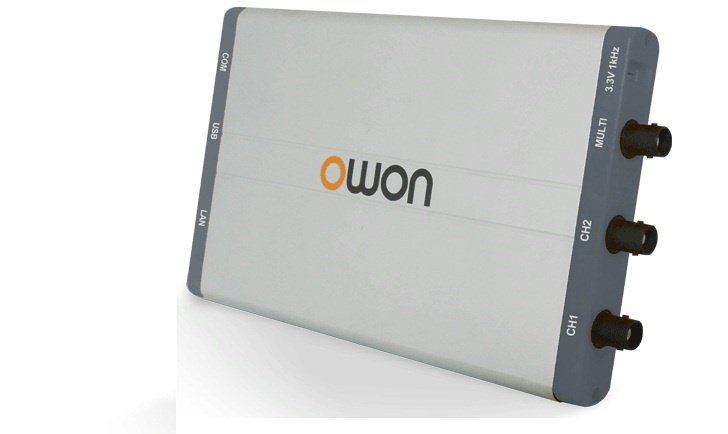

OWON VDS2064 PC示波器(60MHz,4 + 1通道)

  • 制造商: OWON
    Model: VDS2064
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 8,272,000 VND
    Price (include tax) 9,099,200 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications
Bandwidth    60MHz
Sample rate(Real time)    500MSa/s
Record Length 5M
Channels    4 + 1 Channel multi
Input Coupling DC AC GND
Input Impedance 1MΩ±2%,in parallel with10pF±5pF
Channels Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 400V (PK - PK) (DC+AC, PK - PK) 40V (PK - PK) (DC+AC, PK - PK)
 DC Gain Accuracy ±3%
DC Accuracy Average≥16: ±(3% reading + 0.05div) for △T
Probe Attenuation Factor 1X, 10X, 100X, 1000X LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy 150ps Interpolation sin(x) / x Interval (△T)
Accuracy (full bandwidth) Single: ± (1 interval time + 100ppm × reading + 0.6ns),
Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D) 8 bits resolution (2 channels simultaneously)
Vertical Sensitivity 5mV/div~5V/div Trigger Type Edge, Pulse, Video, Slope, Alternate
Trigger Mode  Auto, Normal, Single
Trigger Level  ±5 divisions from screen center Acquisition Mode Sample, Peak Detect, and Average Line / Field Frequency (video) NTSC, PAL, and SECAM standard Cursor Measurement △V, and △T between cursors
Automatic Measurement Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay  A→B↓, +Width, -Width, +Duty, -Duty Waveform Math  +, -, ×, ÷,  FFT
Power Supply 5.0V/1A Power Consumption ≤ 5W
Dimension (W×H×D) 190 × 120 × 18 (mm)
Weight (without package) 0.26 kg

Details

Download datasheet



Catalogue 2020
