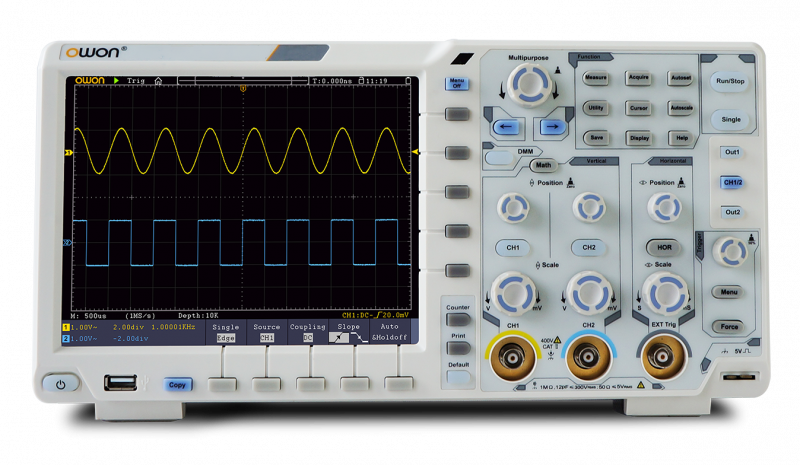

Owon XDS3202E数字示波器(200Mhz,1Gs / s,2通道)

Bandwidth 200MHz
Sample Rate 1GS/s
Vertical Resolution (A/D) 8bits
Record length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical) ≤1.7ns
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels
nput Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms
Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
LF Respond (AC, -3dB) ≥5Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy ±1ppm
Interpolation sin(x) / x
Interval (△T) Accuracy (full bandwidth) Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,UART and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232 and CAN
Trigger Mode Auto, Normal, and Single
Trigger Level ±2000div (1mv/div), ±1000div (2mv/div), ±400div (5mv/div),
±200div (10mv/div), ±100div (20mv/div), ±40div (50mv/div),
±200div (100mv/div), ±100div (200mv/div), ±40div (500mv/div),
±20div (1v/div), ±100div (2v/div), ±40div (5v/div), ±20div (10v/div)
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, auto-cursor
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,
Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,
+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,
+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math +, -, ×, ÷, FFT
Waveform Storage 100 waveforms
Lissajou's
Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Power Consumption <15W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension (W x H x D) 340 x 177 x 90 mm
Weight 2.60 kg

Detail

Model: XDS3202E
Manufacture: Owon
Warranty: 12 months

Bandwidth 200MHz
Sample Rate 1GS/s
Vertical Resolution (A/D) 8bits
Record length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical) ≤1.7ns
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels
nput Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms
Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
LF Respond (AC, -3dB) ≥5Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy ±1ppm
Interpolation sin(x) / x
Interval (△T) Accuracy (full bandwidth) Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,UART and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232 and CAN
Trigger Mode Auto, Normal, and Single
Trigger Level ±2000div (1mv/div), ±1000div (2mv/div), ±400div (5mv/div),
±200div (10mv/div), ±100div (20mv/div), ±40div (50mv/div),
±200div (100mv/div), ±100div (200mv/div), ±40div (500mv/div),
±20div (1v/div), ±100div (2v/div), ±40div (5v/div), ±20div (10v/div)
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, auto-cursor
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,
Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,
+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,
+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math +, -, ×, ÷, FFT
Waveform Storage 100 waveforms
Lissajou's
Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Power Consumption <15W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension (W x H x D) 340 x 177 x 90 mm
Weight 2.60 kg
