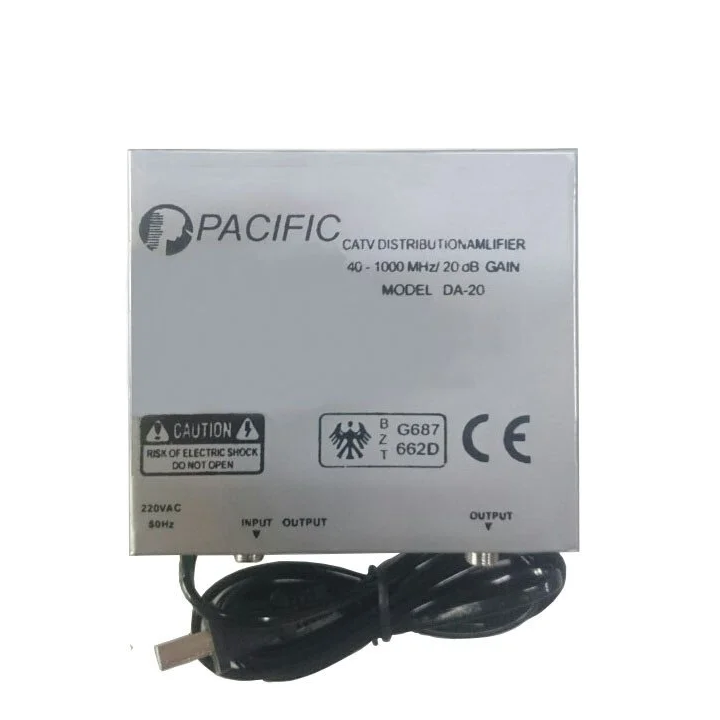

| 制造商: | PACIFIC |
| Model: | DA-20 |
Operation frequency range: 40~862MHz
Max Gain: 18.5-22.5dB
Min Gain: 07-13dB
Max Slope: 13-22 ±0.5dB
Output test port gain: 07-13dB
Return Loss
- Input port: 10dB
- Output port: 10dB
- Input test port: 10dB
- Output test port: 10dB
Max output level: ≥111dBuV
Noise factor: ≤11dB
Dimensions: (D x R x C cm): 16x16x06
Weight: 750 Gram
Power: 220V
