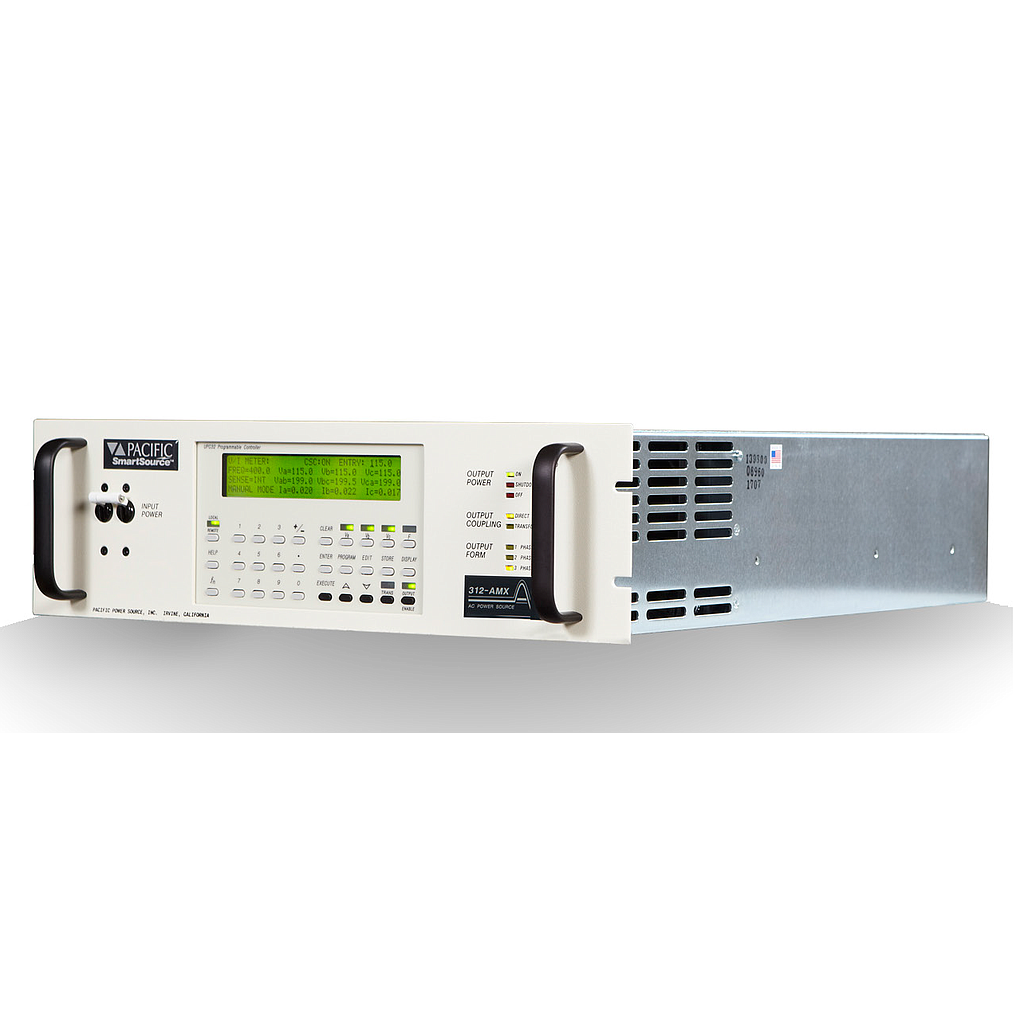

Pacificpower 312AMX 直流和交流电源 (1200VA, 10/3.3Arms)

  • 制造商: Pacificpower
    Model: 312AMX
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Rated Power (VA): 1,200

- Coupling Mode: Direct

- Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l) : 150/300; 150/260

- Output Current (1Ø/2Ø; 3Ø) (Arms) : 10/3.3; 3.3/Ø

- Frequency Range: 20~5000

- Input Power: 1Ø 47-63Hz

- Unit Height (In/mm/U): 5.25/133/3U

- Unit Weight (Lbs/Kg): 70/32

- Output Frequency:

20~5,000 Hz Direct Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 20 ~ 2,000 Hz.

0.50% 2,000 ~ 5,000 Hz.

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ
