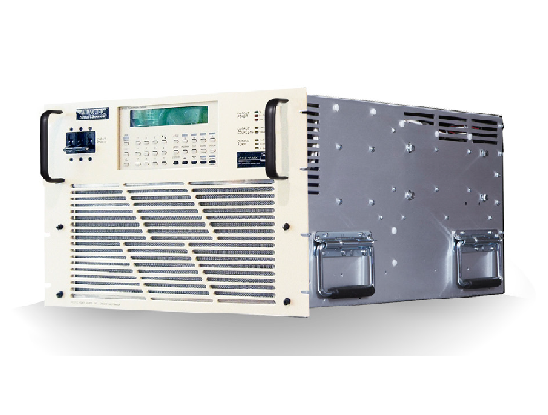

Pacificpower 345AMXT 直流和交流电源 (4500VA, 338/600L-N/L-L)

  • 制造商: Pacificpower
    Model: 345AMXT
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Rated Power (VA): 4500

- Output Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):

Direct: 135/270; 135/234

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 202/404; 270/540; 338/600

3Ø 202/350; 270/468; 338/585

- Current (1Ø/2Ø; 3Ø) (Arms):

Direct: 36/12; 12/Ø

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 24/8; 18/6; 14.4/4.8

3Ø 8/Ø; 6/Ø; 4.8/Ø

- Frequency Range:

Direct: 20~5000

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~5000; 45~5000; 45~5000

- Input Power: 3Ø 47-63Hz

- Unit Height (In/mm/U):

345AMX: 14/356/8U

Transformer Module: 5.25/133/3U

- Unit Weight (Lbs/Kg):

345AMX: 190 /86.3

Transformer Module: 125 /56.8

- Output Frequency:

20~5,000 Hz Direct Coupled

45~5,000 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 20 to 2,000 Hz.

0.50% 2,000 to 5,000 Hz.

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ
