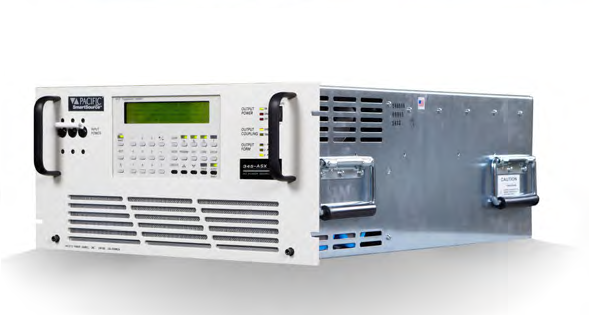

Pacificpower 345ASXT 大功率太平洋电源 (4500VA, 12.8/6.4Arms)

- Rated Power (VA): 4500

- Output Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):

Direct: 135/270; 135/234

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 202/404; 270/540; 338/600

3Ø 202/350; 270/468; 338/585

- Current (1Ø/2Ø; 3Ø) (Arms):

Direct: 36/12; 12/Ø

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 21.3/10.7; 16/8; 12.8/6.4

3Ø 8/Ø; 6/Ø; 4.8/Ø

- Frequency Range:

Direct: 15~1200

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~1200; 45~1200; 45~1200

- Input Power: 3Ø 47-65Hz

- Unit Height (In/mm/U):

345ASX: 8.75/222/5U

Transformer Module: 5.25/134/3U

- Unit Weight (Lbs/Kg):

345ASX: 145 Lbs/66 Kgs

Transformer Module: 125 Lbs/56.8 Kgs

- Output Frequency:

15~1200 Hz Direct Coupled

45~1200 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

+ 3Ø direct coupled:

0.25% 15 to 400 Hz.,

0.50% 400 to 1,200 Hz.

+ 3Ø transformer coupled:

2 to 5% depending on ratio

Improves to less than 0.1% with external sense and CSC enabled

- Output Distortion:

0.25% THDAVG 15~200 Hz

1.25% THDAVG 200~1200 Hz

- Ripple and Noise: -66dB

- Response Time: 60 μsec typical
