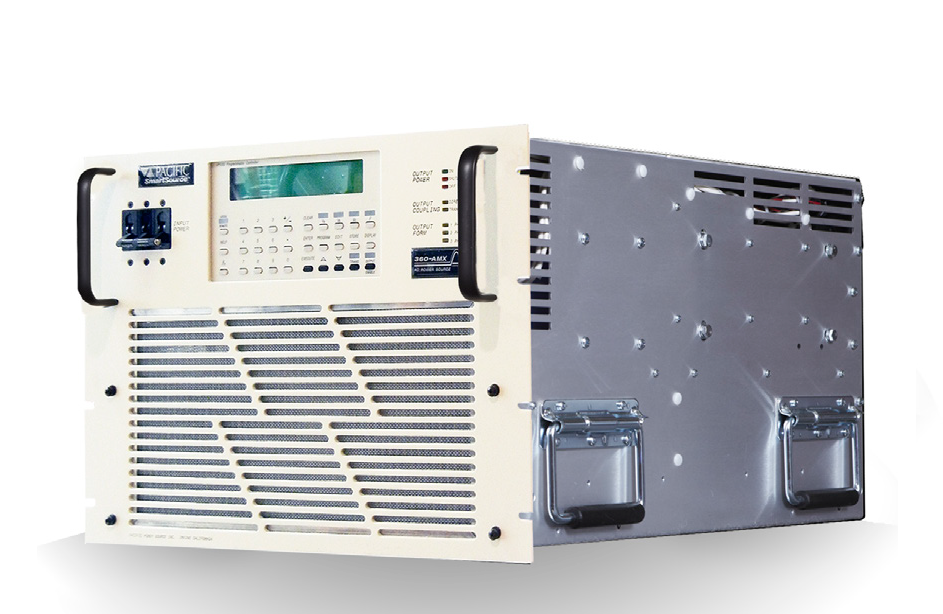

Pacificpower 360AMXT 直流和交流电源 (6000VA, 19.2/6.4Arms)

  • 制造商: Pacificpower
    Model: 360AMXT
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Rated Power (VA): 6000

- Output Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):

Direct: 135/270; 135/234

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 202/404; 270/540; 338/600

3Ø 202/350; 270/468; 338/585

- Current (1Ø/2Ø; 3Ø) (Arms):

Direct: 48/16; 16/Ø

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 32/10.7; 24/8; 19.2/6.4

3Ø 10.7/Ø; 8/Ø; 6.4/Ø

- Frequency Range:

Direct: 20~5000

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~5000; 45~5000; 45~5000

- Input Power: 3Ø 47-63Hz

- Unit Height (In/mm/U):

360AMX: 14/356/8U

Transformer Module: 5.25/134/3U

- Unit Weight (Lbs/Kg):

360AMX: 195 /88.6

Transformer Module: 125 /56.8

- Output Frequency:

20~5,000 Hz Direct Coupled

45~5,000 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 15 ~ 400 Hz.,

0.50% 400 ~ 1,200 Hz.

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ
