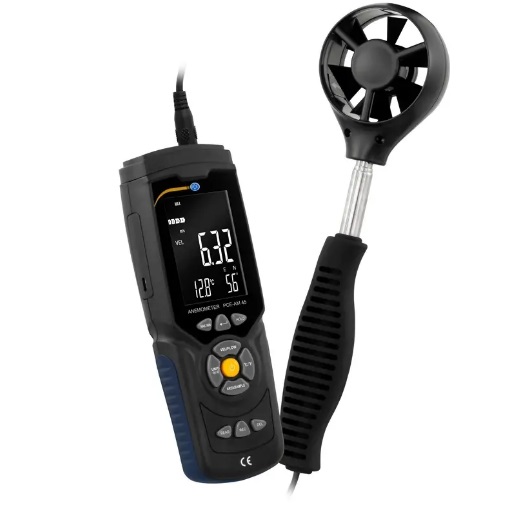

PCE AM 45 多功能风速仪 (0,3~45,0 m/s)
制造商: PCE Model: AM 45 P/N: PCE-AM 45 来源: China - 联系
- Wind speed: m/s
Measuring range: 0.3 ... 45.0 m/s
Resolution: 0.01 m/s
Accuracy: ±3 % ±0.1 m/s of measured value
- Wind speed: ft/min
Measuring range: 60 ... 8800 ft/min
Resolution: 0.01, 0.1, 1 ft/min
Accuracy: ±3 % ±20 ft/min of measured value
- Wind speed: knots
Measuring range: 0.6 ... 88.0 knots
Resolution: 0.01 knots
Accuracy: ±3 % ±0.2 knots of measured value
- Wind speed: km/h
Measuring range: 1.0 ... 140.0 km/h
Resolution: 0.01 km/h
Accuracy: ±3 % ±0.4 km/h of measured value
- Wind speed: mph
Measuring range: 0.7 ... 100 mph
Resolution: 0.01 mph
Accuracy: ±3 % ±0.2 mph of measured value
- Wind direction
Measuring range: 0 ... 360 °
Resolution: 1 °
Accuracy: - - -
- Volume flow CMM (m³/min)
Measuring range: 0 ... 999900 m³/min
Resolution: 0.001 ... 100 m³/min
Adjustable area: 0.001 ... 999 m²
- CFM (FT³/min)
Measuring range: 0 ... 999900 ft³/min
Resolution: 0.001 ... 100 m³/min
Adjustable area: 0.001 ... 999 m³
- Temperature measurement
°C
Measuring range: 0 ... 45 °C
Resolution: 0.1 °C
Accuracy: ±1.0 °C
°F
Measuring range: 32 ... 113 °F
Resolution: 0.18 °F
Accuracy: ±1.8 °F
- Moisture measurement:
Measuring range: 10 ... 90 % RH
Resolution: 0.1 % RH
Accuracy: ±5 % RH
- Further specifications:
Probe length: 270 ... 540 mm / 10.63 … 21.26"
Probe opening: Ø65 mm / 2.5"
Interface: Micro USB
Data memory: 960 measured values
Power supply: 4 x 1.5 V AAA batteries
Power consumption:
15 ... 20 mA without background lighting
20 ... 25 mA with background lighting
0 ... 8 µA standby
Battery discharged display: <4.5 V
Operating conditions: 0 ... 50 °C / 32 ... 122 °F, 40 ... 80 % RH, non-condensing
Storage conditions: -20 ... 60 °C / -4 ... 140 °F, < 80 % RH, non-condensing
Dimensions: 70 x 194 x 35 mm / 2.7 x 7.6 x 1.3"
Weight : 400 g / 14.1 oz
Delivery Scope:
1 x Multifunction Anemometer PCE-AM 45
1 x Micro USB cable
1 x Transport case
4 x 1.5 V AAA batteries
1 x Instruction manual
