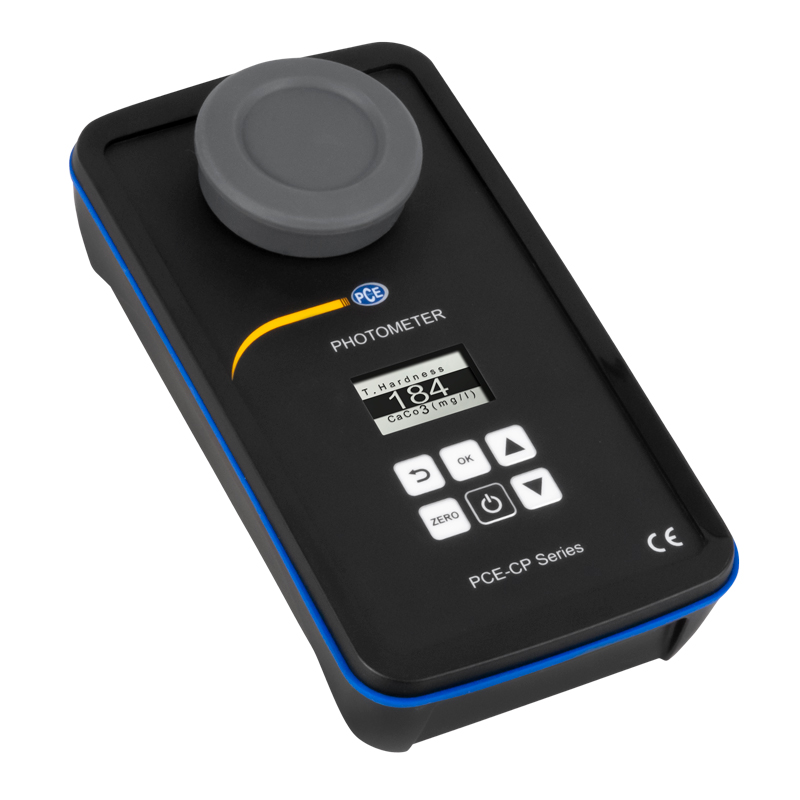

PCE CP 04 pH计 (6.50~8.40 pH, 0.11 pH)

Alkalinity

Measuring range: 0… 30 mg / l

    30… 60 mg / l

    60… 100 mg / l

    100… 200 mg / l

Accuracy:  3 mg / l

    7 mg / l

    12 mg / l

    18 mg / l

Resolution: 1 mg / l

pH

Measuring range: 6.50 ... 8.40 pH

Accuracy: 0.11 pH

Resolution: 0.01 pH

Total hardness

Measuring range: 0… 30 mg / l

    30… 60 mg / l

    60… 100 mg / l

    100… 200 mg / l

    200 ... 300 mg / l

    300 ... 500 mg / l

Accuracy: 3 mg / l

    5 mg / l

    10 mg / l

    17 mg / l

    22 mg / l

    58 mg / l

Resolution: 1 mg / l

Calcium hardness

Measuring range : 0… 25 mg / l

           25… 100 mg / l

           100 ... 300 mg / l

           300 ... 500 mg / l

Accuracy:8 mg / l

  22 mg / l

  34 mg / l

  45 mg / l

Resolution: 1 mg / l

Further specification

Hardness units

mg/l CaCO3, ppm, mmol/l KS 4.3,

°dH (degree of German hardness),

°e (degree English hardness / Degree Clark),

°f (degree of French hardness)

Calibration: Zero point calibration

Light source: 503 nm / 570 nm / 620 nm LED

Light detector: Photodiode

Power supply: 4 x 1.5V AA batteries

Dimensions of the cuvette:  36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Menu languages: English, German, French, Spanish and Italian

Storage: Automatic storage of measured values ​​and readout

Storage space: 256 values

Interface: Bluetooth connection with app and PC software

Automatic shutdown: After 300 seconds of inactivity

Operating conditions: 5… 45 °C, 20 ... 90% RH non-condensing

Storage conditions: 5… 45 °C, 20 ... 90% RH non-condensing

Dimensions: 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in

Weight: 230 g / 8.1 oz

Delivery scope

1 x Multi-parameter pH meter PCE-CP 04 incl. cuvette

1 x Replacement cuvette

1 x Light protection cover

1 x Microfiber cloth

1 x Plunger

1 x 10 ml dosing pipette

4 x AA batteries

1 x Quick start guide

1 x Service bag

1 x Free app

1 x Free PC software

1 x Free cloud service
