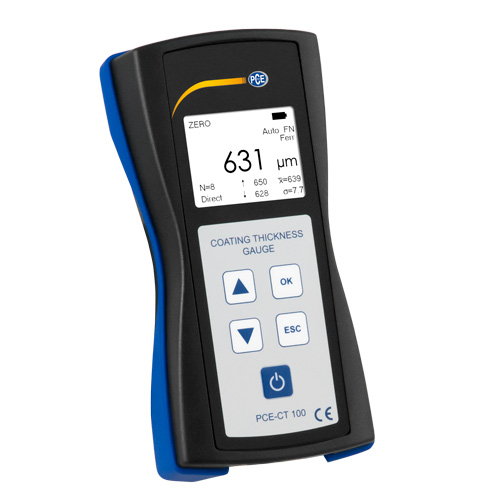

PCE CT 100 涂层测厚仪

Specifications

Resolution

0.1 or < 0.2% of the measured value

(for probes with a measuring range of up to 1500 μm / 1.5 mm / 59 mil)

1 or < 0.2% of the measured value

(for probes with a measuring range of more than 1500 μm / 1.5 mm / 59 mil)

Display:

High-resolution color display, backlit

Measuring units μm, mm or mils

Menu languages: English, German, French, Italian, Spanish, Turkish, Czech, Chinese

Storage:

Direct mode: Max. 1,000 measured values ​​in Fe (Type F) and nFe (Type N) mode

File memory: Max. 100,000 measured values

Statistics parameters: N, x̅¯, σ, Max, Min, Cp, Cpk, Kvar

On-screen statistics displayed: x̅¯, σ, Max, Min

Alarm limits: Programmable with visual and audible signaling

Interfaces: USB 2.0, Bluetooth 4.0

Operating temperature: 0 ... +50 °C / +32 ... +122 °F

Power supply: 3 x 1.5 V AA batteries

Dimensions: Approx. 163 x 82 x 40 mm / 6.42 x 3.23 x 1.58" (H x W x D)

Weight: Approx. 290 g / 0.64 lb (including batteries)


Dilivery Contents

1 x PCE-CT 100 dry film thickness (DFT) meter

3 x 1.5 V AA batteries

1 x USB cable

1 x PC-compatible software

1 x factory calibration certificate according to ISO 9001

1 x user manual

1 x carrying case
