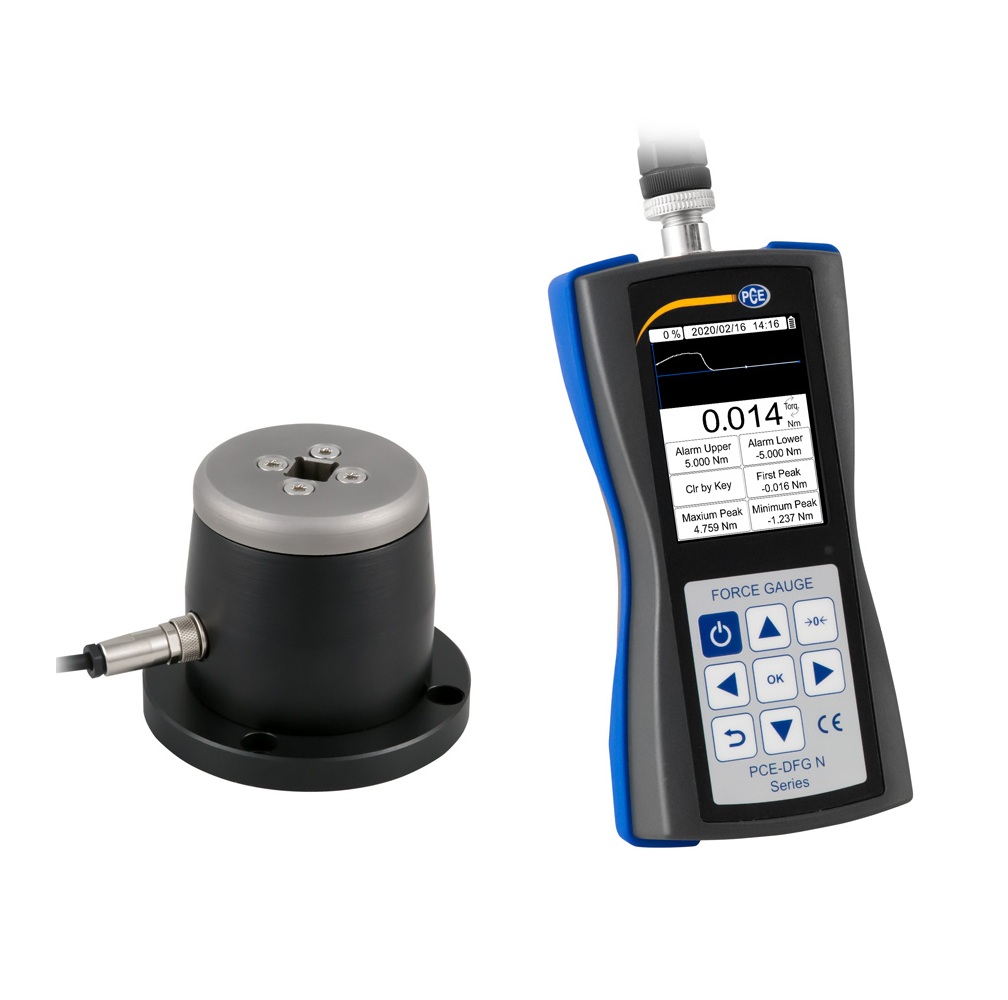

PCE DFG N 5TW 扭矩计 (5 Nm)

Measuring range: 0~5 Nm

Resolution: 0.001 Nm

Accuracy: ± 0.5% of the measuring range

Units of measurement: Nm, lbfft, kgfm

Torque sensor mount: 1/2" (12.5 x 12.5 mm) internal square

Torsion measurement: Left Right

Display: 2.8" TFT graphic display

Alarm modes: Inside Outside

Sampling rate: 6~1600 Hz

Storage: For 100 measurement series with 8,000 measurement points each

Power supply: NiMh battery, 6V/1600-mAh

Battery life: About 10 hours

Power supply/charging adapter: 12V/1 A

Outputs Interface: USB

Switching output: 12V / 50-mA

Protection class: IP 54

Operating and storage conditions: -10~50°C/14~122°F, 5~95% RH non-condensing

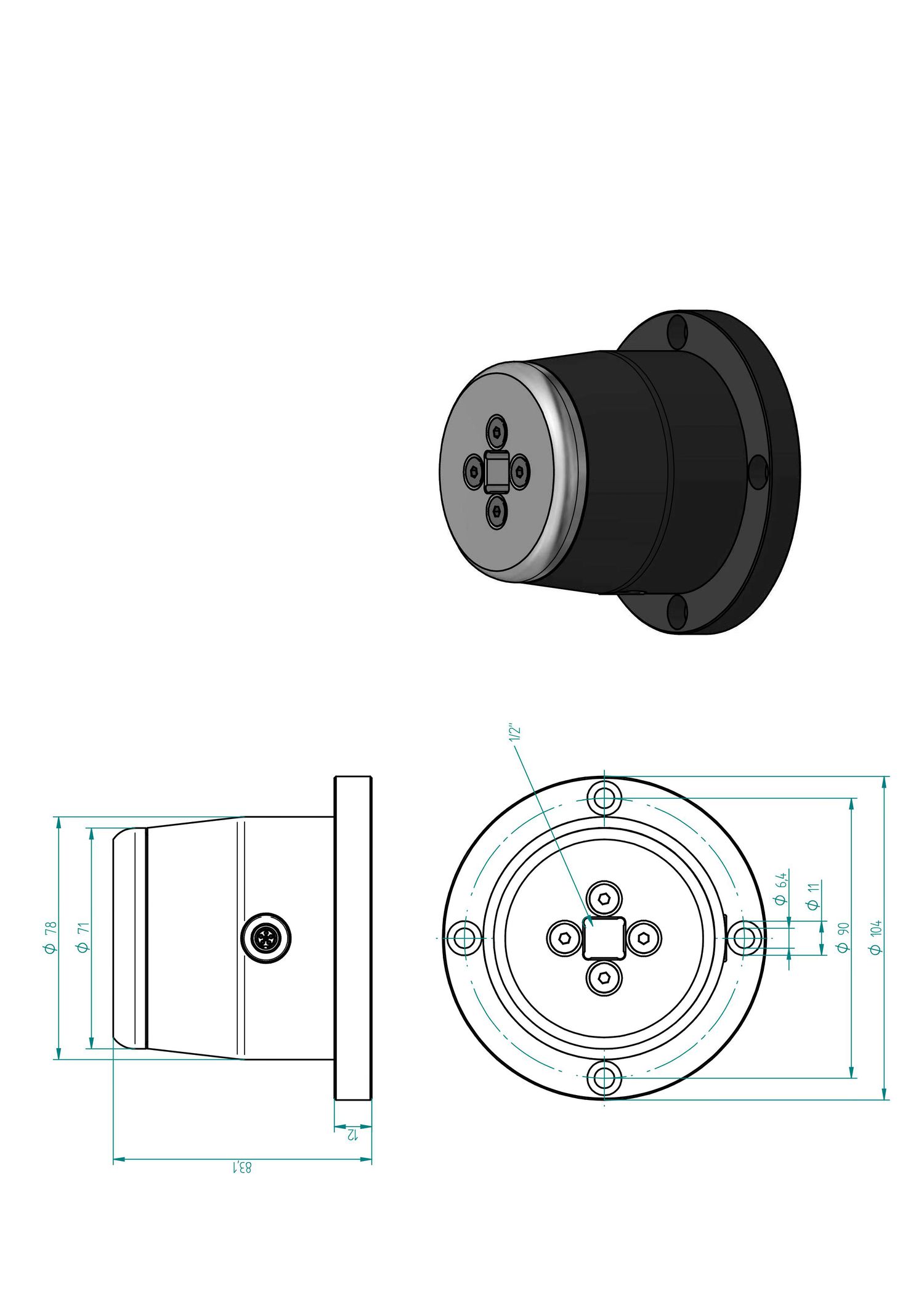

Torque transducer dimensions: H 85 mm/Ø 72 mm/Ø 104 mm (H 3.3"/Ø 2.8"/Ø 4.1")(see technical drawing)

Sensor cable length / td>: Approx. 1.5 m / 4.9 ft

Dimensions handset: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight handset: 540 g / 1.2 lbs

Weight of the torsion transducer: 985 g / 2.2 lbs
