PCE ERT 10 接地电阻测试仪


Measurementranges





Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance





20 Ω / 200 Ω / 2000 Ω
200 V
1000 V
750 V (40 Hz - 400 Hz)
200

Resolution

Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance

0,01 Ω / 0,1 Ω / 1 Ω
0,1 V
1 V
1 V
0,1

Accuracy

Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance

±(2 % + 10 digits) / ±(2 % + 3 digits) /
±(2 % + 3 digits)
±(3 % + 3 digits)
±(0,8 % + 3 digits)
±(1,2 % + 10 digits)
±(1 % + 2 digits)

Measuring quota

2,5 / seconds

Display

Backlight LCD display

Power

6 x 1,5 V AA batteries

Operating conditions

0 ... 40 ºC / <80 span="" class="SpellE">H.r.

Dimensions

200 x 92 x 50 mm

Weight

700 g

Standards

IEC10101, CAT III 1000 V

Delivery Contents

1 x earthing tester PCE-ERT 10

1 x set of test leads (approx. 15m)

4 x ground spikes

6 x batteries

1 x carrying case

1 x instruction manual



Detail

Measurement of earth resistance up to 2000Ω / earth voltage / CAT III 1000 V / zero reset / large LCD display / picks are included in the delivery

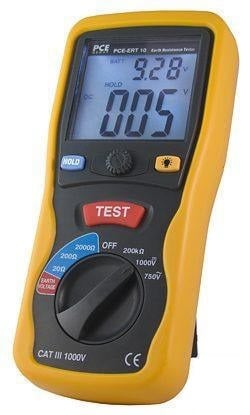

The PCE-ERT 10 series Earth Resistance Tester is a handheld instrument used to determine quickly and easily earth and ground resistance. Earth resistance and insulation are determined with the PCE-ERT 10 series Earth Resistance Tester through 3 conductors up to 2000 Ω. By means of the rotary switch a zero setting can be performed before every measurement to optimize accuracy. The PCE-ERT 10 Earth Resistance Tester allows to measure standard resistance up to 200 kΩ, to measure earth voltage as well as to measure alternating and direct voltage. Its large LCD display with backlight indicates both the current measurement value and the battery voltage to check the battery. The delivery includes two testing cables and pickets. The carrying case can be used to storage the accessories.

- 3 conductors measuring method

- Earth / ground resistance is determined in three
  different measurement ranges up to 2000
Ω

- Measuring earth voltage up to 200 V

- Battery voltage is shown in the large LCD
  display

- Possibility to zero setting.

- Measuring alternating and direct voltage

- All the accessories are stored in the carrying
  case.

View / print user’s manual of the
PCE-ERT 10 series
Earth Resistance Tester.

See / Print user manual of the PCE-ERT 10 series earth resistance tester.

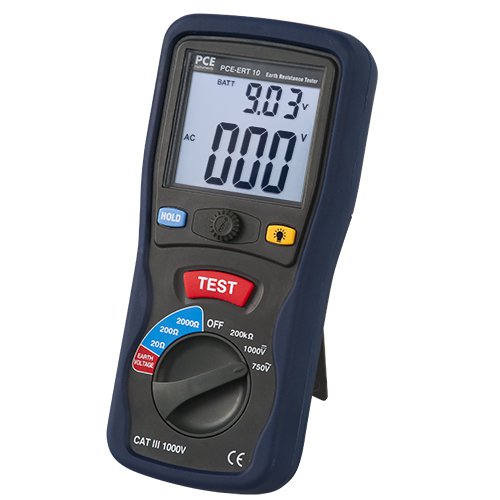

PCE-ERT 10 series earth resistance tester is a handheld instrument used to determine quickly and easily earth and ground resistance.

Technical Specifications

Measurement ranges

Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance

20 Ω / 200 Ω / 2000 Ω
200 V
1000 V
750 V (40 Hz - 400 Hz)
200

Resolution

Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance

0,01 Ω / 0,1 Ω / 1 Ω
0,1 V
1 V
1 V
0,1

Accuracy

Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance

±(2 % + 10 digits) / ±(2 % + 3 digits) /
±(2 % + 3 digits)
±(3 % + 3 digits)
±(0,8 % + 3 digits)
±(1,2 % + 10 digits)
±(1 % + 2 digits)

Measuring quota

2,5 / seconds

Display

Backlight LCD display

Power

6 x 1,5 V AA batteries

Operating conditions

0 ... 40 ºC / <80 span="" class="SpellE">H.r.

Dimensions

200 x 92 x 50 mm

Weight

700 g

Standards

IEC10101, CAT III 1000 V

Accesories of the Earth Resistance Tester

PCE-ERT 10 series earth resistance tester: Testing cables are marked with different colors for a better orientation.
Testing cables are marked with
different
colors for a better orientation

PCE-ERT 10 series earth resistance tester: Testing cables connections are in the upper half of the tester.
Testing cables connections are
in the upper half of the tester.

PCE-ERT 10 series earth resistance tester: Picks are included in the delivery of the earth resistance tester.
Picks are included in the delivery
of the
Earth Resistance Tester

PCE-ERT 10 series earth resistance tester: Carrying case for the PCE-ERT 10 series earth resistance tester.
Carrying case for the PCE-ERT 10
series
Earth Resistance Tester.
