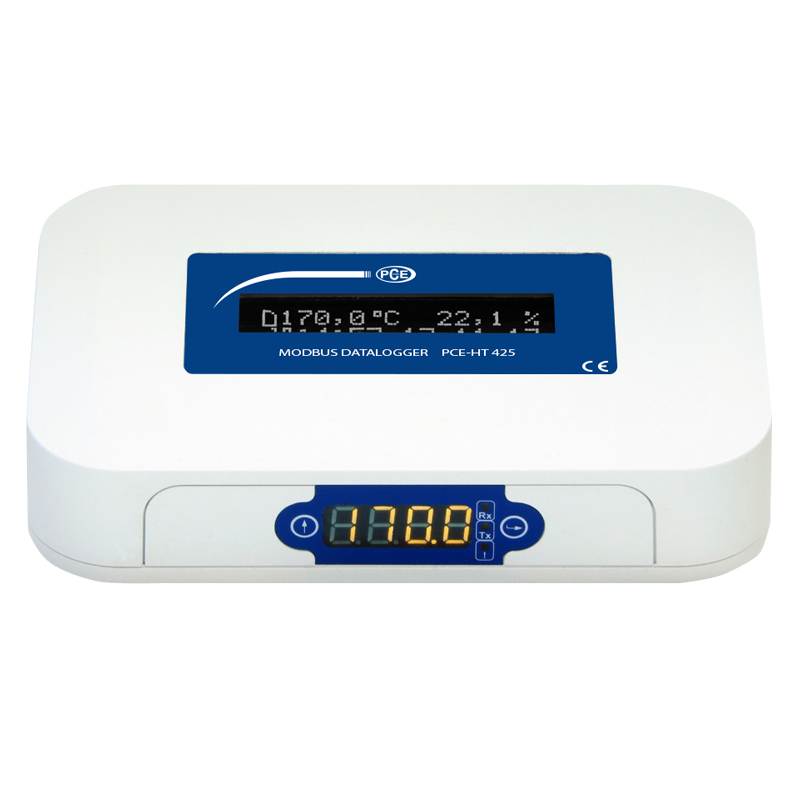

PCE HT 425-10A0E0 Modbus显示器 (0~2.9V; 3~24V; 0,1~100 Hz)

Digital input:

Low: 0 ... 2.9V

High: 3 ... 24V

0.1 ... 100 Hz

Interface:

Ethernet 10/100 Mbit

RS485 master / slave

Transfer modes:

Modbus TCP, HTTP, FTP, SMTP

Modbus RTU 8N2, 8E1, 8O1, 8N1

Power supply:

12V DC (external power supply)

PoE IEEE 802.3af

Power consumption: <5W

Operating conditions: -20 ... 60°C / -4 ... 140°F max. 95% RH

Degree of protection: IP20

Assembly: Wall mounting or on a flat surface

Weight : Approx. 300 g / < 1 lb

Dimensions: 150 x 100 x 28 mm / 5.9 x 3.9 x 1.1 in

Delivery Scope:

1 x Modbus display PCE-HT 425

Details

Datasheet


Manual
