PCE PCE-LDC 20 气体泄漏检测器 (38~42 kHz)

- General technical data:

Measurement functions: MAX, ALARM

Units: bar, psi, MPa, l/min, m³/h, cfm

Frequency: 38 ... 42 kHz

Display type: LC Touch Display

Display size: 3.5 inch

Display refresh rate: 1 x per second

Measurement rate: 1 Hz

Memory medium: Internal memory

Storage capacity: 1 GB

Microphone type: Electret condenser

Other functions: Leakage rating

Interface: USB-C, 3.5 mm jack, Bluetooth

Sensor: Ultrasonic

Measuring medium: Non-explosive gases, air, refrigerants

Camera resolution: 5 megapixels

Operating time: 6 h

Automatic switch-off adjustable: 0 ... 60 min.

Laser: 640 ... 660 nm wavelength, < 1.0 mW output power

Housing: ABS

Menu language: German, English, French, Spanish, Portuguese, Turkish, Polish, Chinese, Japanese, Korean, Czech

Protection class (device): IP30

Power supply: 5V DC 3 A (via USB-C)

Weight: 432 g / 0.95 lb

Other weights:

Sound horn: 38.5 g / 0.08 lb

Acoustic horn + tip: 20.5 g / 0.04 lb

Dimensions (L x W x H): 230 x 100 x 62 mm

Other dimensions:

Sound horn : L 130 Ø 60 mm

Alignment tube + tip : L 190 Ø 14 mm, opening Ø 1.5 mm

Operating conditions: 0 ... 40 °C , 0 ... 80 % r.H

Storage conditions: -10 ... 50 °C , 0 ... 90 % r.H

- Delivery scope:

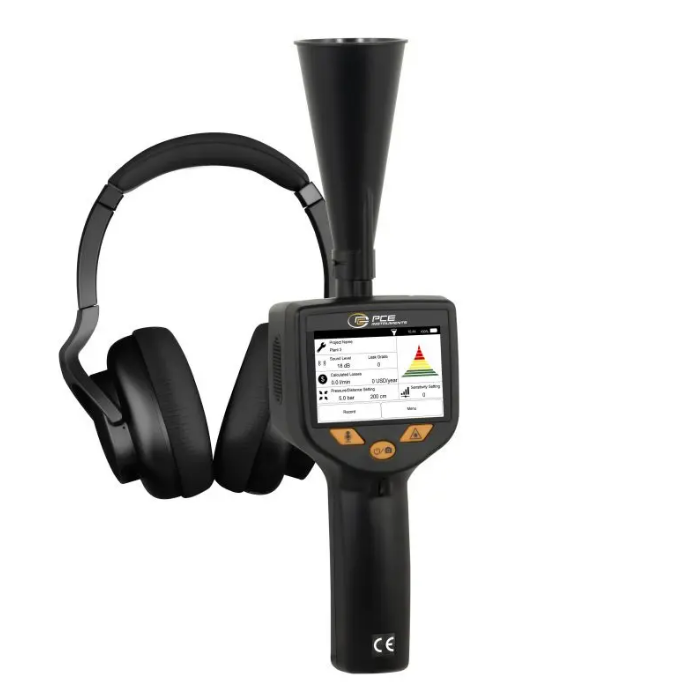

1x PCE-LDC 20 gas leak detector

1x calibration certificate

1x software

1x USB-C cable

1x wireless headphones

1x micro USB cable

1x 5 V power supply unit with adapters

1x operating instructions
