PCE LTD 100 测温仪 (-80~ +70 °C, ± 0.5 °C)

Measuring range: -80 ... +70 °C  / -112 ... +158 °F

Measuring accuracy: ± 0.5 °C (-30 ... +70 °C / -22 ... +158 °F)

                   ± 1 °C (-80 ... -31 °C / -112 ... +23.8 °F)

Resolution: 0.1 °C

Storage capacity: 17,280 values

Sampling interval: 1 s … 24 h

Storage formats via software

PDF, TXT, CSV, XLS, JPG, BMP, CIN

Start mode: time setting

Stop modes: when a USB connection has been established,

  as soon as the memory is full, as soon as the set

  number of memory points has been reached

Operating conditions  : -80 … +70 °C / -112 ... +158 °F, non-condensing

Storage conditions: -40 … +70 °C / -40 ... +158 °F (without battery)

Battery life: 2 years @ 25 °C / 77 °F / 15 min storage interval

30 days @ -80 ... -70 °C  / -112 ... +158 °F / 15 min storage interval

Power supply: 3.6 V 2/3 AA high temperature battery

  interchangeable (ER14335)

Protection class: IP67

Dimensions: Ø 18 mm + 115 mm / Ø 7" + 45"

Weight: ca. 95 g  / 3.3 oz (without battery)

Delivery scope:

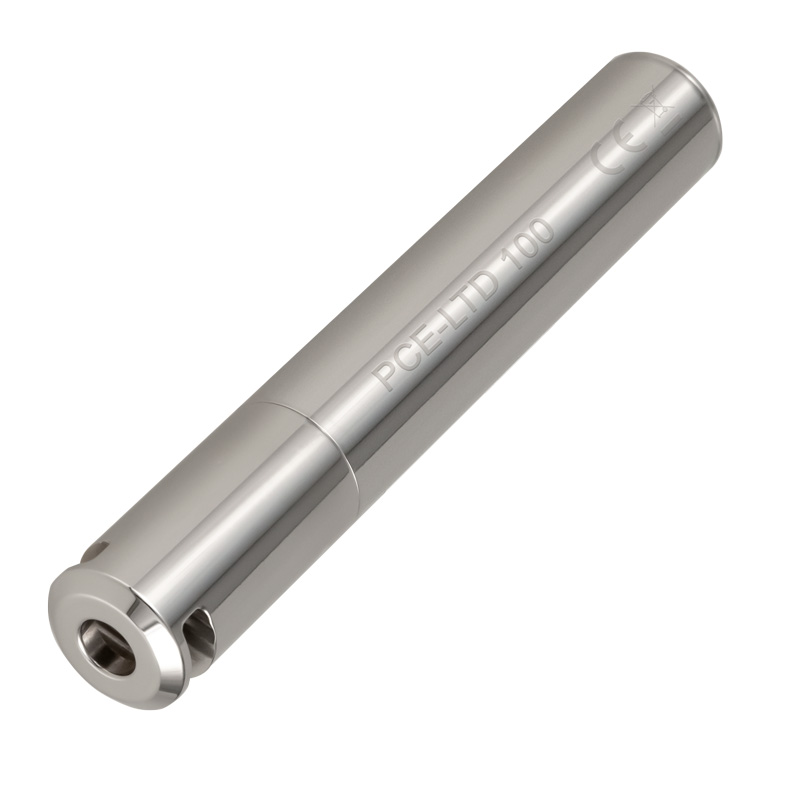

1 x Thermometer PCE-LTD 100

1 x 3.6 V 2/3 AA high temperature battery

1 x Instruction manual

1 x Software

Datasheet
