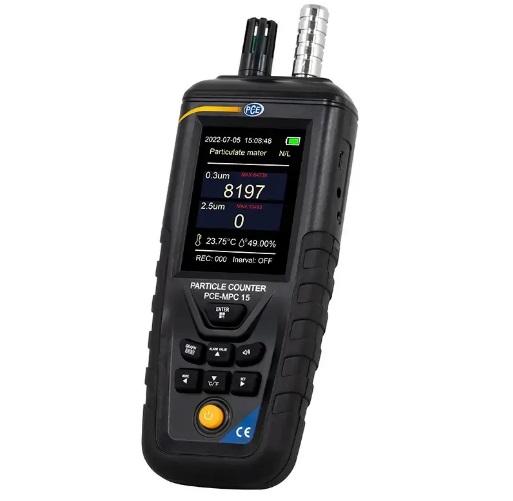

PCE PCE-MPC 15 空气采样机 (0 ~1000 µg / m³; 10~60°C; 0~100%)

- Mass concentration;

Measurable particle sizes: PM2.5 / PM10

Measuring range PM 2.5: 0 ... 1000 µg/m³

Resolution: 1 µm

Accuracy PM 2.5:

0 ... 100 µg/m³: ±10 µg/m³

101 ... 1000 µg/m³: ±10% of measured value

- Particle counter:

Measurable particle sizes: 0.3 / 2.5 µm

Resolution: 1 µm

Accuracy: reference measurement

Number of maximum particles: 2,000,000 particles/L

- Temperature:

Measuring range: -10 ... 60 °C, 14 ... 140 °F

Resolution: 0.01 °C, °F

Accuracy: ±2 °C, ±3.6 °F

- Humidity (RH);

Measuring range: 0 ... 100 %

Resolution: 0.01 %

Accuracy: ±3 %

- Further specifications:

Response time: 1 second

Warm up: 10 seconds

Mounting connection: 1/4" tripod connection

Dimensions intake:

outside: Ø13 mm / 0.51"

inside: Ø7 mm / 0.27"

height: 35 mm / 1.37"

Display: 3.2" LC color display

Power supply (mains adapter):

primary: 100 ... 240 V AC, 50 / 60 Hz, 0.3 A

secondary: 5 V DC, 2 A

Power supply (battery); 3.7 V, 8.14 Wh, 18650

Battery life: ca. 9 hours

Auto power off: turned off

15, 30, 45 minutes

1, 2, 4, 8 hours

Data memory:

flash memory for approx. 12 measurement runs

a measurement run contains 999 measurement points

Storage interval: 10, 30 seconds; 1, 5, 10, 30, 60 minutes

Dimensions: 222 x 80 x 46 mm / 8.7 x 3.1 x 1.8"

Weight: 320 g / 11.2 oz

Delivery Scope:

1 x Air Sampler PCE-MPC 15

1 x Carrying case

1 x 18650 battery

1 x Mini tripod

1 x Micro USB cable

1 x USB power adapter

1 x Instruction manual
