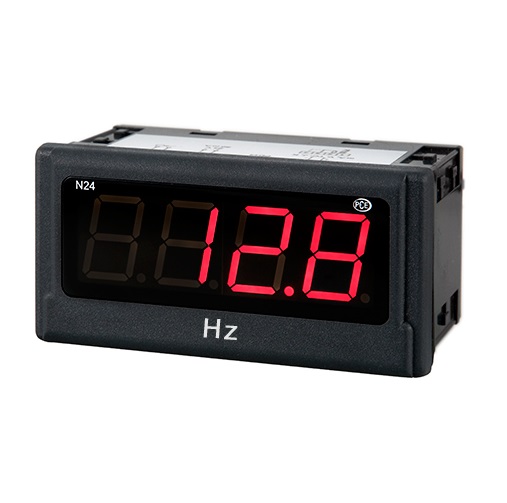

PCE N24Z 功率指示器

Input (selectable):

1 ... 100 V AC

2.5 ... 250 V AC

4 ... 400 V AC

20 ... 500 Hz (at 24 ... 480 V)

0.01 ... 1 A AC

0.05 ... 5 A AC

Accuracy : ± (0.2 % of full scale + 1 dgt.) (at 20 ... 500 Hz)

Internal resistance: 10 Ω ± 1 %

Scaling : 2-point

Display: 4-digit, 7-segments, LED, digit height: 20 mm / 0.78"

Display range: -1999 ... 9999

Power source for sensor (selectable): 24 V DC, max. 30 mA

Ambient temperature during operation: -10 °C ... +55 °C / 14 °F ... 131 °F

storage: : -25 °C ... +85 °C / -13 °F ... 185 °F

Diameters: 96 mm x 48 mm x 64 mm / 3.7 x 1.8 x 2.5"

Size of switch board: 92 mm x 45 mm / 3.6 x 1.7" (according to DIN)

Power source (selectable):

24 V AC

110 V AC

230 V AC

85 ... 253 V AC/DC

20 ... 40 V AC/DC

Protection class: front: IP 65

Weight : < 200 g / 7oz

Mounting: mounting clips with clamp screws, connection via plug board

Enclosure: robust plastic housing

Delivery Scope:

1 x Power Indicator PCE-N24Z, fastening material, seal, operating instructions
