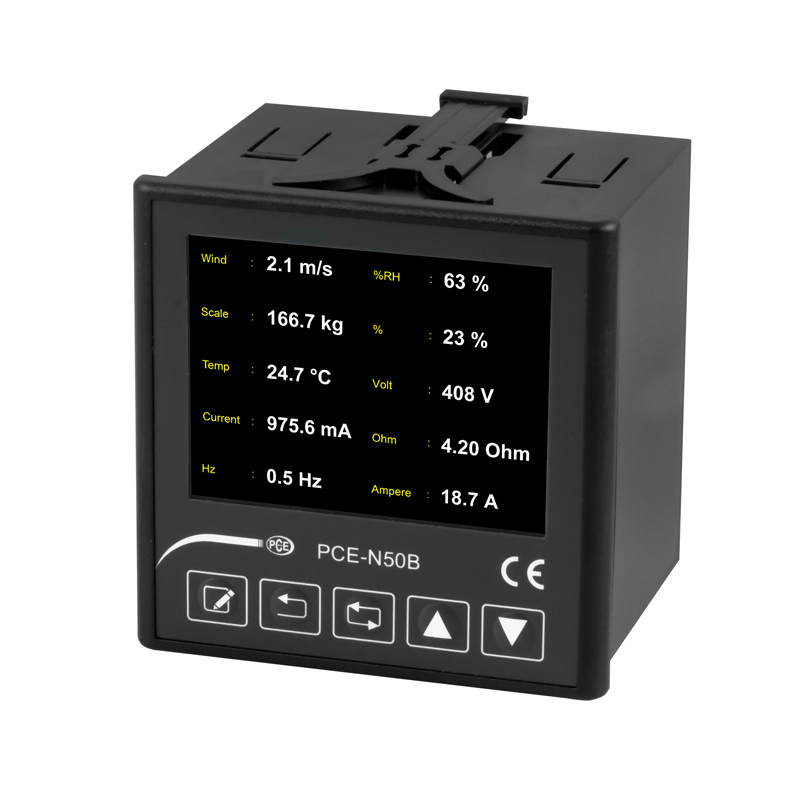

PCE N50B 面板仪表 (90~250V AC)

Interface: RS 485 Modbus RTU Master

Number of slave devices / registers: 10

Operating conditions: 0 ... 50°C / 32 ... 122°F, max 80% RH

Storage conditions: -25 ... 70°C / -13 ... 158°F, max. 80% rh

Degree of protection: Front: IP65; Rear: IP20

Power supply: 90 ... 250V AC

Input: Max. 7 VA

Connections: Screw

Voltage supply: max. 2.5 mm²

Signal input: max. 1.5 mm²

Panel cut: 90.5 x 90.5 mm / 3.6 x 3.6 in

Dimensions: 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in

Weight: About 400 g / < 1 lb

Delivery Scope:

1 x Panel Meter PCE-N50B

2 x Mounting clamps

1 x User manual

Details

CE Certificate
