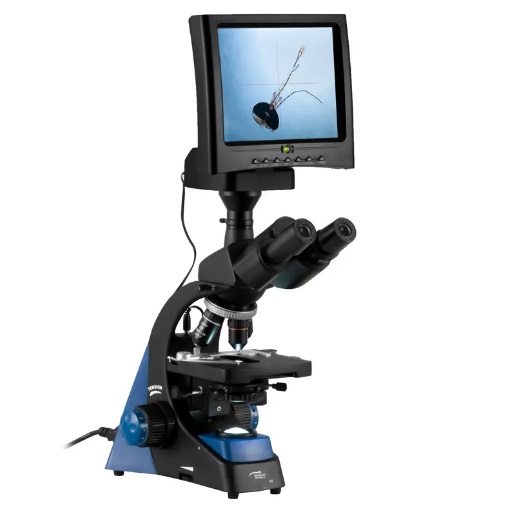

PCE PBM 100 数字显微镜 (4x, 10x, 40x, 100x)

Eyepieces: WF 10x wide field eyepieces

Head: Trinocular

360° rotatable

30° angled view

Right diopter adjustment

Interpupillary distance adjustable: 55 ... 75 mm

Lenses: 4

Magnification: 4x, 10x, 40x, 100x

Numerical aperture: 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm

Focal length: 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm

Working distance: 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm

Coverslip: 0.17 mm

Total magnification eyepiece + lens: 40, 100, 400, 1000

Tube length: 160 mm

Conjugate distance: 195 mm

Cross table: 125 x 125 mm

Shift: 40 x 60 mm

Hub: 14 mm

Condenser

Cover: yes

Adjustment: yes

Filter: yellow, green, blue

Lighting: 3.5 V 1 W LED

Dimmable: yes

- Technical Data Camera / Display:

Camera

Size: 13"

Horizontal resolution: 700 lines

Resolution: 976 x 582 pixels

LCD Display

Resolution: 800 x 600 pixels

Colours: 16777216

Video output highest resolution: 1024 x 768 at 75 Hz

Video Format: PAL, NTSC4.43, NTSC3.58, SECAM

- General Technical Data:

Power supply: 230 VAC 50 Hz

Environmental conditions: 0 ... 40 °C / 85 % RH. max.

Dimensions: 550 x 320 x 210 mm

Weight: 5100 g

Delivery Scope:

1 x Microscope PCE-PBM 100

1 x Connection cable

1 x Screen connection cable

3 x Colour filter

1 x LC display with camera

1 x Cinch video cable

1 x Video Cinch-USB converter

1 x Video software

1 x USB extension

1 x Cover hood

1 x User manual
