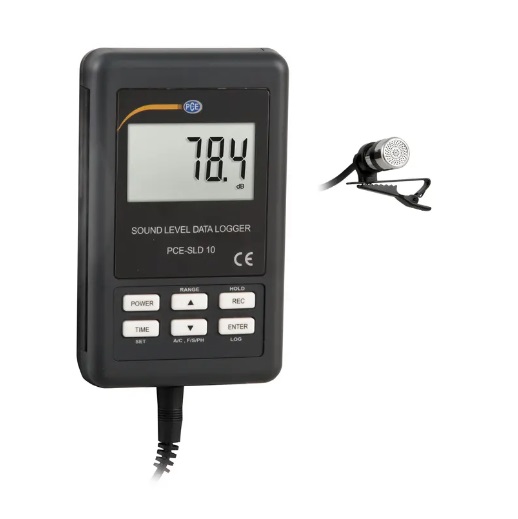

PCE SLD 10 声级数据记录器 (30~130 dB)

Measuring range: 30 ... 130 dB

Measurement accuracy: Based on class 2 according to IEC61672

Resolution: 0.1 dB

Frequency: A & C

Term review:

Fast: 125 ms

Slow: 1 s

Frequency range: 31.5 Hz ... 8 kHz

Measuring range selection:

30 ... 130 dB (auto)

30 ... 80 dB

50 ... 100 dB

80 ... 130 dB

Measurement functions:

Hold by pressing a button

 Peak Hold

 Max-Min

Analog output:4 ... 20-mA

Note: The scaling of the analog output depends on the selected measuring range.

Adjustment: Via optional calibrator in an internal menu

Data storage: SD card max 16 GB

Storage rate: 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s

Memory error: <0.1% of the total stored data

Refresh rate from the display: About 1 s

Interface: Serial, for live visualization on computers (Data cable SOFT-LUT-USB sold separately)

Power supply: 6 x 1.5V AAA batteries; 9V / 1 A power adapter

Automatic shutdown: After 10 minutes without operation; Disabled when in power supply mode

Operating conditions: 0 ... 50°C / 32 ... 122°F,  max. 85 rh

Weight : About 230 g / < 1 lb

Dimensions:

Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in

Microphone: 12.5 x 32 mm

Cable length: approx. 120 cm

Delivery Scope:

1 x Sound level data logger PCE-SLD 10

1 x Microphone

1 x Wall holder

1 x Memory card

1 x 4 ... 20 screw connectors

1 x Power adapter 9V / 1 A

1 x User manual
